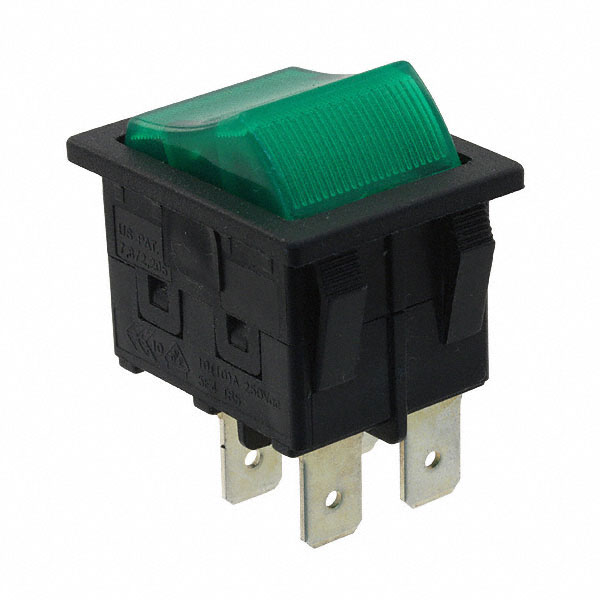

RBW2ABLKGILEF1

Active

E-Switch

ROCKER; DPST; POS: 2; OFF-ON; 16A/125VAC; GREEN; IP66; NEON LAMP

Deep-Dive with AI

Search across all available documentation for this part.

RBW2ABLKGILEF1

Active

E-Switch

ROCKER; DPST; POS: 2; OFF-ON; 16A/125VAC; GREEN; IP66; NEON LAMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RBW2ABLKGILEF1

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Circuit	DPST
Color - Actuator/Cap	Green
Current Rating (Amps)	16 A
Electrical Life	50000 Cycles
Illumination Type, Color	Green, Neon
Illumination Voltage (Nominal)	125 VAC
Ingress Protection	IP66
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	30 mm
Panel Cutout Dimensions [y]	22.3 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

RBW2ABL Series

Part	Actuator Marking	Current Rating (Amps)	Mounting Type	Color - Actuator/Cap	Voltage Rating - AC	Illumination Type, Color	Circuit	Electrical Life	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Illumination Voltage (Nominal)	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Switch Function	Ingress Protection	Voltage Rating - DC
E-Switch RBW2ABLKRILFF1	O -	16 A	Panel Mount Snap-In	Red	125 V	Neon Red	DPST	50000 Cycles	22.3 mm	30 mm	125 VAC	Quick Connect - 0.250" (6.3mm)	85 °C	-20 C	Concave (Curved) - Illuminated	On-Off	IP66
E-Switch RBW2ABLKRILFF2	O -	16 A	Panel Mount Snap-In	Red	125 V	Neon Red	DPST	50000 Cycles	22.3 mm	30 mm	250 VAC	Quick Connect - 0.250" (6.3mm)	85 °C	-20 C	Concave (Curved) - Illuminated	On-Off	IP66
E-Switch RBW2ABLKBILEF3	No Marking	16 A	Panel Mount Snap-In	Blue	125 V	Blue Incandescent	DPST	50000 Cycles	22.3 mm	30 mm	12 VDC	Quick Connect - 0.250" (6.3mm)	85 °C	-20 C	Concave (Curved) - Illuminated	On-Off	IP66
E-Switch RBW2ABLKBLKFF0	O -	16 A	Panel Mount Snap-In	Black	125 V		DPST	50000 Cycles	22.3 mm	30 mm		Quick Connect - 0.250" (6.3mm)	85 °C	-20 C	Concave (Curved)	On-Off	IP66
E-Switch RBW2ABLKRILFF3	O -	16 A	Panel Mount Snap-In	Red	125 V	Incandescent Red	DPST	50000 Cycles	22.3 mm	30 mm	12 VDC	Quick Connect - 0.250" (6.3mm)	85 °C	-20 C	Concave (Curved) - Illuminated	On-Off	IP66	12 V
E-Switch RBW2ABLKBLKEF0	No Marking	16 A	Panel Mount Snap-In	Black	125 V		DPST	50000 Cycles	22.3 mm	30 mm		Quick Connect - 0.250" (6.3mm)	85 °C	-20 C	Concave (Curved)	On-Off	IP66
E-Switch RBW2ABLKGILEF1	No Marking	16 A	Panel Mount Snap-In	Green	125 V	Green Neon	DPST	50000 Cycles	22.3 mm	30 mm	125 VAC	Quick Connect - 0.250" (6.3mm)	85 °C	-20 C	Concave (Curved) - Illuminated	On-Off	IP66

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.76
		10	$ 6.70
		25	$ 6.32
		50	$ 6.04
		108	$ 5.75
		324	$ 5.36
		540	$ 5.18
		1080	$ 5.14

Description

General part information

RBW2ABL Series

Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
