BAS70-04W

Active

Diotec Semiconductor

Search across all available documentation for this part.

Active

Diotec Semiconductor

Technical Specifications

Parameters and characteristics for this part

Specification	BAS70-04W

Current - Reverse Leakage @ Vr	100 nA
Diode Configuration	1 Pair Series Connection
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C

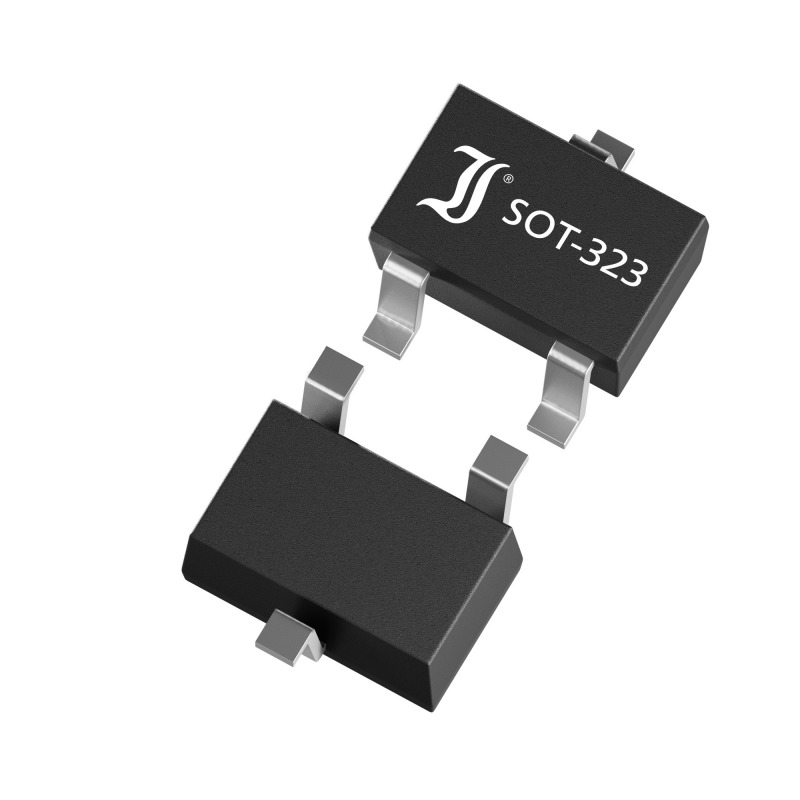

Package / Case	SC-70, SOT-323
Reverse Recovery Time (trr)	5 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOT-323
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	70 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Speed	Speed	Qualification	Technology	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Reverse Recovery Time (trr)	Package / Case	Grade	Voltage - Forward (Vf) (Max) @ If	Diode Configuration
Diotec Semiconductor BAS70-04W-AQ	Any Speed	200 mA	AEC-Q101	Schottky	SOT-323	100 nA	70 V	Surface Mount	150 °C	-55 °C	5 ns	SC-70 SOT-323	Automotive	1 V	1 Pair Series Connection
Diotec Semiconductor BAS70-06	Any Speed	200 mA		Schottky	SOT-23-3 (TO-236)	100 nA	70 V	Surface Mount	150 °C	-55 °C	5 ns	SC-59 SOT-23-3 TO-236-3		1 V	1 Pair Common Anode
Diotec Semiconductor BAS70-04W	Any Speed	200 mA		Schottky	SOT-323	100 nA	70 V	Surface Mount	150 °C	-55 °C	5 ns	SC-70 SOT-323		1 V	1 Pair Series Connection

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.05

General part information

Diode Array 1 Pair Series Connection 70 V 70mA Surface Mount SC-70, SOT-323
