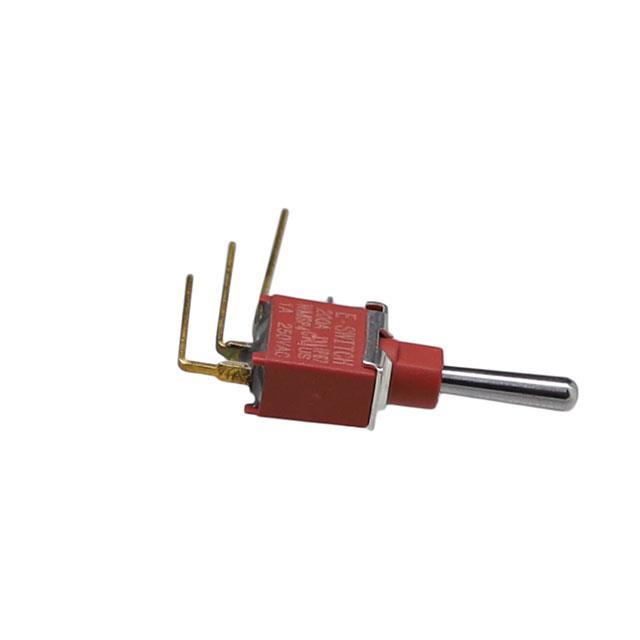

200AWMSP4T1A1M7QE

Active

E-Switch

SWITCH TOGGLE SPDT 3A 120V

Deep-Dive with AI

Search across all available documentation for this part.

200AWMSP4T1A1M7QE

Active

E-Switch

SWITCH TOGGLE SPDT 3A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	200AWMSP4T1A1M7QE	200AWMSP4 Series

Actuator Length [x]	10.16 mm	6.1 - 10.16 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded
Circuit	SPDT	SPDT
Current Rating (Amps)	3 A	0.4 - 3 A
Electrical Life	50000 Cycles	50000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Vertical, Right Angle	Through Hole, Vertical, Right Angle, Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

200AWMSP4 Series

SWITCH TOGGLE SPDT 3A 120V

Part	Circuit	Ingress Protection	Actuator Length [x]	Termination Style	Actuator Material	Bushing Thread	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Illumination	Electrical Life	Mounting Type	Features	Current Rating (Amps)	Actuator Type	Switch Function	Voltage Rating - DC
E-Switch 200AWMSP4T1A1M7QE	SPDT	IP67 - Dust Tight, Waterproof	10.16 mm	PC Pin	Brass, Chrome Plated	Unthreaded	-30 ░C	85 °C	120 V	Non-Illuminated	50000 Cycles	Right Angle, Through Hole, Vertical	Epoxy Sealed Terminals	3 A	Standard Round	Mom-Off-Mom	28 V
E-Switch 200AWMSP4T2A1M2RE	SPDT	IP67 - Dust Tight, Waterproof	6.1 mm	PC Pin	Brass, Chrome Plated	Unthreaded	-30 ░C	85 °C	20 V	Non-Illuminated	50000 Cycles	Through Hole	Epoxy Sealed Terminals	0.4 VA	Standard Round	Mom-Off-Mom	20 V
E-Switch 200AWMSP4T1A1M61RE	SPDT	IP67 - Dust Tight, Waterproof	10.16 mm	PC Pin	Brass, Chrome Plated	Unthreaded	-30 ░C	85 °C	20 V	Non-Illuminated	50000 Cycles	Through Hole, Right Angle	Epoxy Sealed Terminals	0.4 VA	Standard Round	Mom-Off-Mom	20 V
E-Switch 200AWMSP4T2A1M7QE	SPDT	IP67 - Dust Tight, Waterproof	6.1 mm	PC Pin	Brass, Chrome Plated	Unthreaded	-30 ░C	85 °C	120 V	Non-Illuminated	50000 Cycles	Right Angle, Through Hole, Vertical	Epoxy Sealed Terminals	3 A	Standard Round	Mom-Off-Mom	28 V
E-Switch 200AWMSP4T2A1M1QE	SPDT	IP67 - Dust Tight, Waterproof	6.1 mm	PC Pin	Brass, Chrome Plated	Unthreaded	-30 ░C	85 °C	120 V	Non-Illuminated	50000 Cycles	Through Hole	Epoxy Sealed Terminals	3 A	Standard Round	Mom-Off-Mom	28 V
E-Switch 200AWMSP4T2A1XXQE	SPDT	IP67 - Dust Tight, Waterproof	6.1 mm	PC Pin	Brass, Chrome Plated	Unthreaded	-30 ░C	85 °C	120 V	Non-Illuminated	50000 Cycles		Epoxy Sealed Terminals	3 A	Standard Round	Mom-Off-Mom	28 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	270	$ 4.63

Description

General part information

200AWMSP4 Series

Toggle Switch SPDT Through Hole, Right Angle, Vertical

Documents

Technical documentation and resources

No documents available
