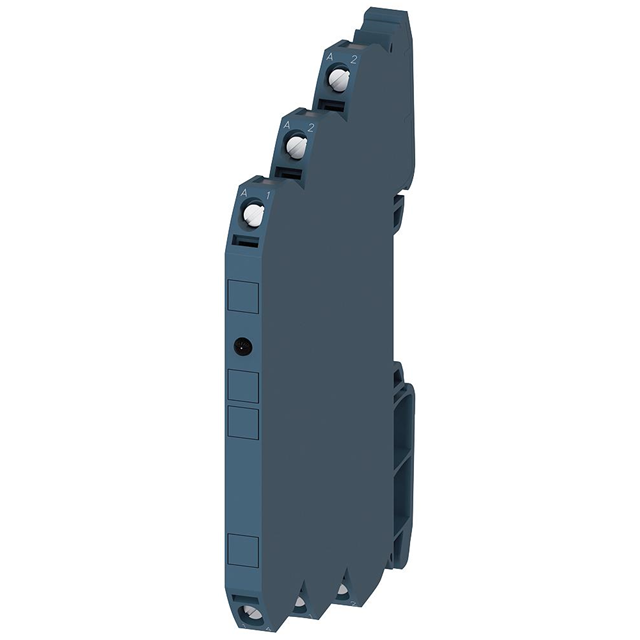

3RQ30181AF00

Active

Siemens

RELAY GEN PURPOSE SPDT 3A 230V

Search across all available documentation for this part.

Active

Siemens

RELAY GEN PURPOSE SPDT 3A 230V

Technical Specifications

Parameters and characteristics for this part

Part	Operate Time	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching	Termination Style	Approval Agency	Coil Voltage	Contact Material	Mounting Type	Switching Voltage	Coil Type	Features	Relay Type	Contact Rating (Current)	Contact Form
Siemens 3RQ30181AF00	9 ms	19 ms	-25 °C	60 °C	750 VA	Screw Terminal	CCC CSA EAC UL	230 VAC	Silver Tin Oxide (AgSnO)	DIN Rail	250 VAC	Non Latching	Lighted Indicator	General Purpose	3 A	SPDT (1 Form C)
Siemens 3RQ30182AE00	8 ms	17 ms	-25 °C	60 °C	750 VA	Spring Terminal	CCC CSA EAC UL	115 VAC	Silver Tin Oxide (AgSnO)	DIN Rail	250 VAC	Non Latching	Lighted Indicator	General Purpose	3 A	SPDT (1 Form C)
Siemens 3RQ30182AF00	9 ms	19 ms	-25 °C	60 °C	750 VA	Spring Terminal	CCC CSA EAC UL	230 VAC	Silver Tin Oxide (AgSnO)	DIN Rail	250 VAC	Non Latching	Lighted Indicator	General Purpose	3 A	SPDT (1 Form C)
Siemens 3RQ30182AB00	12 ms	14 ms	-25 °C	60 °C	750 VA	Spring Terminal	CCC CSA EAC UL	24 VAC	Silver Tin Oxide (AgSnO)	DIN Rail	250 VAC	Non Latching	Lighted Indicator	General Purpose	3 A	SPDT (1 Form C)
Siemens 3RQ30182AN080AA0	6 ms	11 ms	-40 °C	70 °C	750 VA	Spring Terminal	CCC CSA EAC UL	110 VDC	Silver Tin Oxide (AgSnO)	DIN Rail	250 VAC	Non Latching	Lighted Indicator	General Purpose	3 A	SPDT (1 Form C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 111.04

General part information

General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail
