1376477-7
ActiveTE Connectivity AMP Connectors

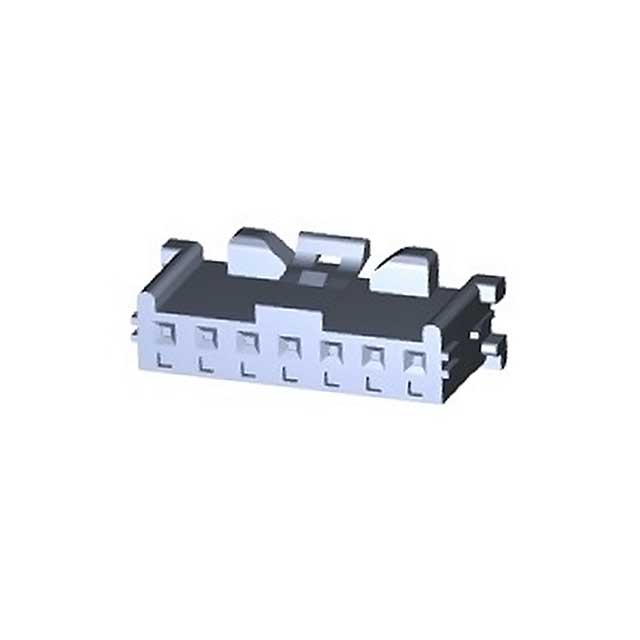

CONN PLUG HSG 7POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1376477-7
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 7POS 2.50MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1376477-7 | 1376477 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 7 | 4 - 7 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Pitch [x] | 0.098 in | 0.098 in |
| Pitch [x] | 2.5 mm | 2.5 mm |
1376477 Series
CONN PLUG HSG 7POS 2.50MM
| Part | Number of Positions | Connector Type | Number of Rows | Insulation Material | Mounting Type | Color | Note | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Pitch [x] | Pitch [x] | Contact Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1376477-7 | 7 | Plug | 1 | Polyamide (PA66), Nylon 6/6, Glass Filled | Free Hanging (In-Line) | Natural | Contacts Not Included | -30 ░C | 105 ░C | Latch Lock | 0.098 in | 2.5 mm | Female Socket | Crimp |
TE Connectivity AMP Connectors 1376477-5 | Plug | 1 | Polyamide (PA66), Nylon 6/6, Glass Filled | Free Hanging (In-Line) | Natural | Contacts Not Included | -30 ░C | 105 ░C | Latch Lock | 0.098 in | 2.5 mm | Female Socket | Crimp | |
TE Connectivity AMP Connectors 1376477-4 | 4 | Plug | 1 | Polyamide (PA66), Nylon 6/6, Glass Filled | Free Hanging (In-Line) | Natural | Contacts Not Included | -30 ░C | 105 ░C | Latch Lock | 0.098 in | 2.5 mm | Female Socket | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2400 | $ 0.37 | |
Description
General part information
1376477 Series
7 Rectangular Connectors - Housings Plug Natural 0.098" (2.50mm)
