1376477-5

Active

TE Connectivity AMP Connectors

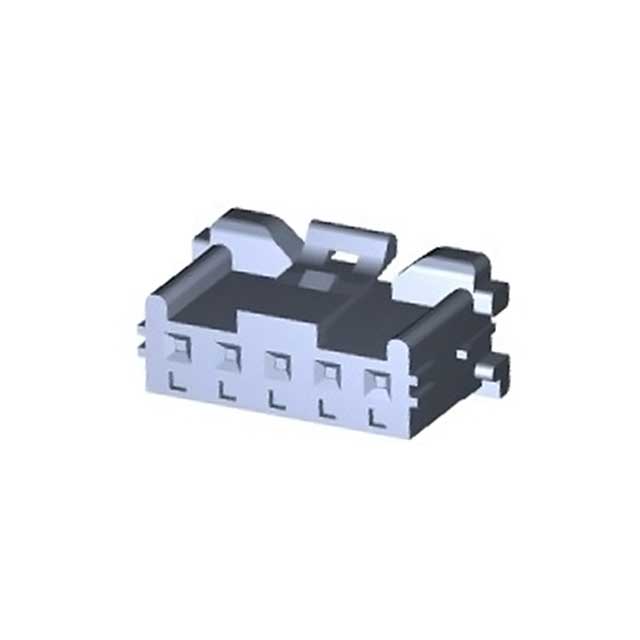

CONN PLUG HSG 5POS 2.50MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 5POS 2.50MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2400	$ 0.22

General part information

5 Rectangular Connectors - Housings Plug Natural 0.098" (2.50mm)

Technical documentation and resources

Specification	1376477-5	1376477 Series

Color	Natural	Natural
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	-	4 - 7
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Pitch [x]	0.098 in	0.098 in
Pitch [x]	2.5 mm	2.5 mm

Part	Number of Positions	Connector Type	Number of Rows	Insulation Material	Mounting Type	Color	Note	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Pitch [x]	Pitch [x]	Contact Type	Contact Termination
TE Connectivity AMP Connectors 1376477-7	7	Plug	1	Polyamide (PA66), Nylon 6/6, Glass Filled	Free Hanging (In-Line)	Natural	Contacts Not Included	-30 ░C	105 ░C	Latch Lock	0.098 in	2.5 mm	Female Socket	Crimp
TE Connectivity AMP Connectors 1376477-5		Plug	1	Polyamide (PA66), Nylon 6/6, Glass Filled	Free Hanging (In-Line)	Natural	Contacts Not Included	-30 ░C	105 ░C	Latch Lock	0.098 in	2.5 mm	Female Socket	Crimp
TE Connectivity AMP Connectors 1376477-4	4	Plug	1	Polyamide (PA66), Nylon 6/6, Glass Filled	Free Hanging (In-Line)	Natural	Contacts Not Included	-30 ░C	105 ░C	Latch Lock	0.098 in	2.5 mm	Female Socket	Crimp
