AWH 50G-E232-IDC

Active

Assmann WSW Components

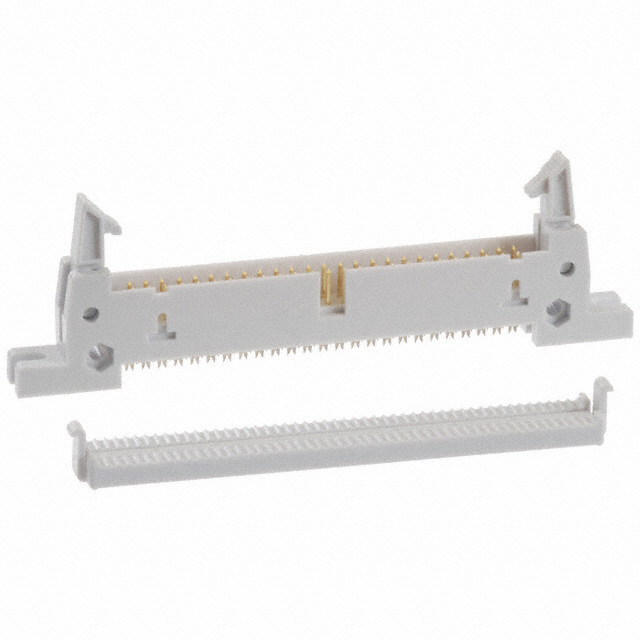

CONN HEADER 50POS IDC GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AWH 50G-E232-IDC

Active

Assmann WSW Components

CONN HEADER 50POS IDC GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AWH 50G-E232-IDC

Cable Termination	IDC
Color	Gray
Connector Type	Header
Contact Finish	Gold
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Long
Features	Feed Through
Number of Positions	50
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

AWH 50G Series

Part	Cable Termination	Features	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Color	Wire Type	Row Spacing [x]	Row Spacing	Connector Type	Contact Type	Fastening Type	Mounting Type	Current Rating (Amps)	Contact Finish - Mating	Insulation Material	Contact Shape	Contact Finish - Post	Insulation Color	Shrouding	Contact Material	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Termination	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Number of Positions Loaded	Style
Assmann WSW Components AWH 50G-E202-IDC	IDC	Feed Through	Gold	2	2.54 mm	0.1 in	50	Gray	Ribbon Cable	0.1 in	2.54 mm	Header	Male Pin
Assmann WSW Components AWH50G-0232-IDC-R	IDC	Feed Through	Gold	2	2.54 mm	0.1 in	50	Gray	Ribbon Cable	0.1 in	2.54 mm	Header	Male Pin	Latch Lock/Eject Hooks Long	Free Hanging (In-Line)
Assmann WSW Components AWH50G-0222-T-R		Keying Slot		2			50					Header	Male Pin	Latch Lock/Eject Hooks Short	Through Hole	3 A	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Square	Tin	Gray	Shrouded - 4 Wall	Brass	0.13 in	3.3 mm	2.54 mm	0.1 in	17 mm	0.669 "	Solder	0.1 in	2.54 mm	UL94 V-0	-40 °C	105 ░C	Flash	All	Board to Cable/Wire
Assmann WSW Components AWH50G-E232-IDC-R	IDC	Feed Through	Gold	2	2.54 mm	0.1 in	50	Gray	Ribbon Cable	0.1 in	2.54 mm	Header	Male Pin	Latch Lock/Eject Hooks Long
Assmann WSW Components AWH 50G-E232-IDC	IDC	Feed Through	Gold	2	2.54 mm	0.1 in	50	Gray	Ribbon Cable	0.1 in	2.54 mm	Header	Male Pin	Latch Lock/Eject Hooks Long
Assmann WSW Components AWH50G-E202-IDC-R	IDC	Feed Through	Gold	2	2.54 mm	0.1 in	50	Gray	Ribbon Cable	0.1 in	2.54 mm	Header	Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.60
		10	$ 4.18
		100	$ 3.68
		500	$ 3.13
		1000	$ 2.67

Description

General part information

AWH 50G Series

50 Position Rectangular Header Connector IDC Gold
