Specification	MTMS-118-54-G-S-285

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 µin
Contact Finish Thickness - Post	Flash
Contact Finish Thickness - Post (string_set)	Flash
Contact Length - Mating	0.285 in
Contact Length - Post	0.17 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Overall Contact Length	0.555 in
Pitch - Mating	0.05 in
Shrouding	Unshrouded
Style	Board
Termination	Solder

MTMS-118 Series

Part	Number of Positions Loaded	Mounting Type	Termination	Contact Material	Contact Finish - Post	Pitch - Mating	Shrouding	Insulation Color	Overall Contact Length	Number of Rows	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Contact Length - Post	Contact Type	Insulation Material	Contact Finish Thickness - Mating	Connector Type	Style	Number of Positions	Contact Finish - Mating	Insulation Height	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)	Row Spacing - Mating
Samtec Inc. MTMS-118-54-G-S-285	All	Through Hole	Solder	Phosphor Bronze	Gold	0.05 in	Unshrouded	Black	0.555 in	1	Push-Pull	125 °C	-55 °C	Square	0.17 in	Male Pin	Liquid Crystal Polymer (LCP)	10 µin	Header	Board	18	Gold	0.1 in	0.285 in	Flash	Flash
Samtec Inc. MTMS-118-02-G-D-100	All	Through Hole	Solder	Phosphor Bronze	Gold	0.05 in	Unshrouded	Black	0.32 in	2	Push-Pull	125 °C	-55 °C	Square	0.12 in	Male Pin	Liquid Crystal Polymer (LCP)	10 µin	Header	Board	36	Gold	0.1 in	0.1 in	Flash	Flash	0.1 in
Samtec Inc. MTMS-118-60-G-D-230	All	Through Hole	Solder	Phosphor Bronze	Gold	0.05 in	Unshrouded	Black	0.825 in	2	Push-Pull	125 °C	-55 °C	Square	0.495 in	Male Pin	Liquid Crystal Polymer (LCP)	10 µin	Header	Board	36	Gold	0.1 in	0.23 in	Flash	Flash	0.1 in
Samtec Inc. MTMS-118-52-S-S-205	All	Through Hole	Solder	Phosphor Bronze	Tin	0.05 in	Unshrouded	Black	0.425 in	1	Push-Pull	125 °C	-55 °C	Square	0.12 in	Male Pin	Liquid Crystal Polymer (LCP)	30 µin	Header	Board	18	Gold	0.1 in	0.205 in

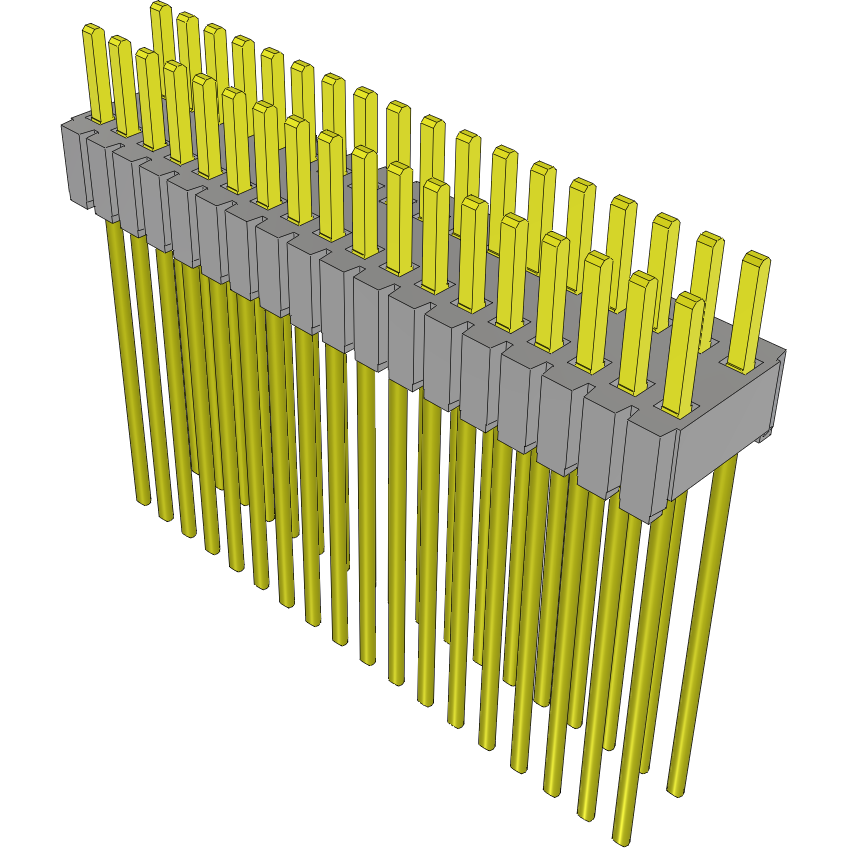

Samtec Inc. MTMS-118-58-G-D-115	All	Through Hole	Solder	Phosphor Bronze	Gold	0.05 in	Unshrouded	Black	0.705 in	2	Push-Pull	125 °C	-55 °C	Square	0.49 in	Male Pin	Liquid Crystal Polymer (LCP)	10 µin	Header	Board	36	Gold	0.1 in	0.115 in	Flash	Flash	0.1 in
Samtec Inc. MTMS-118-51-S-D-190	All	Through Hole	Solder	Phosphor Bronze	Tin	0.05 in	Unshrouded	Black	0.41 in	2	Push-Pull	125 °C	-55 °C	Square	0.12 in	Male Pin	Liquid Crystal Polymer (LCP)	30 µin	Header	Board	36	Gold	0.1 in	0.19 in			0.1 in
Samtec Inc. MTMS-118-59-G-S-260	All	Through Hole	Solder	Phosphor Bronze	Gold	0.05 in	Unshrouded	Black	0.755 in	1	Push-Pull	125 °C	-55 °C	Square	0.395 in	Male Pin	Liquid Crystal Polymer (LCP)	10 µin	Header	Board	18	Gold	0.1 in	0.26 in	Flash	Flash
Samtec Inc. MTMS-118-60-G-S-603	All	Through Hole	Solder	Phosphor Bronze	Gold	0.05 in	Unshrouded	Black	0.825 in	1	Push-Pull	125 °C	-55 °C	Square	0.122 in	Male Pin	Liquid Crystal Polymer (LCP)	10 µin	Header	Board	18	Gold	0.1 in	0.603 in	Flash	Flash
Samtec Inc. MTMS-118-60-G-D-175	All	Through Hole	Solder	Phosphor Bronze	Gold	0.05 in	Unshrouded	Black	0.825 in	2	Push-Pull	125 °C	-55 °C	Square	0.55 in	Male Pin	Liquid Crystal Polymer (LCP)	10 µin	Header	Board	36	Gold	0.1 in	0.175 in	Flash	Flash	0.1 in
Samtec Inc. MTMS-118-02-G-S-065	All	Through Hole	Solder	Phosphor Bronze	Gold	0.05 in	Unshrouded	Black	0.32 in	1	Push-Pull	125 °C	-55 °C	Square	0.155 in	Male Pin	Liquid Crystal Polymer (LCP)	10 µin	Header	Board	18	Gold	0.1 in	0.065 in	Flash	Flash
