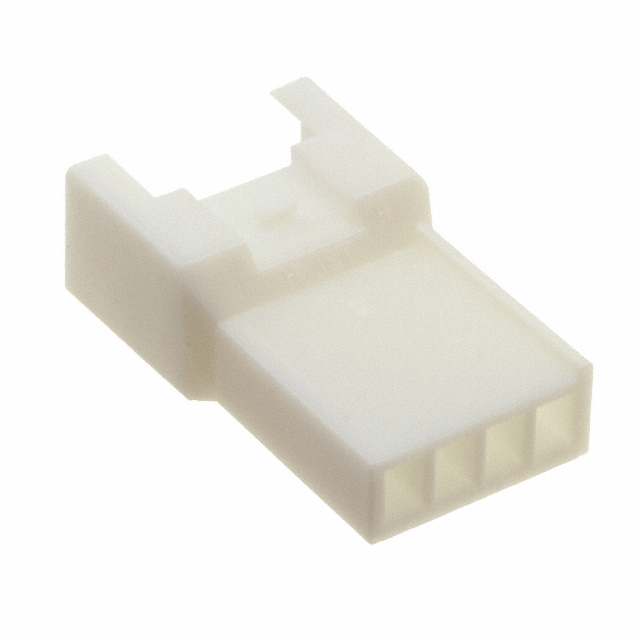

XARR-04VF

Active

JST Sales America Inc.

CONN RCPT HSG 4POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart

XARR-04VF

Active

JST Sales America Inc.

CONN RCPT HSG 4POS 2.50MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XARR-04VF

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA), Nylon
Note	Contacts Not Included
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

XARR Series

Part	Fastening Type	Contact Termination	Insulation Material	Note	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Rows	Contact Type	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]
JST Sales America Inc. XARR-14V	Latch Lock	Crimp	Nylon Polyamide (PA)	Contacts Not Included	Receptacle	-25 °C	85 °C	Natural	1	Male Pin	14	Panel Mount Snap-In	0.098 in	2.5 mm
JST Sales America Inc. XARR-11V	Latch Lock	Crimp	Nylon Polyamide (PA)	Contacts Not Included	Receptacle	-25 °C	85 °C	Natural	1	Male Pin	11	Panel Mount Snap-In	0.098 in	2.5 mm
JST Sales America Inc. XARR-10VF	Latch Lock	Crimp	Nylon Polyamide (PA)	Contacts Not Included	Receptacle	-25 °C	85 °C	Natural	1	Male Pin	10		0.098 in	2.5 mm
JST Sales America Inc. XARR-02V	Latch Lock	Crimp	Nylon Polyamide (PA)	Contacts Not Included	Receptacle	-25 °C	85 °C	Natural	1	Male Pin	2	Panel Mount Snap-In	0.098 in	2.5 mm
JST Sales America Inc. XARR-04V	Latch Lock	Crimp	Nylon Polyamide (PA)	Contacts Not Included	Receptacle	-25 °C	85 °C	Natural	1	Male Pin	4	Panel Mount Snap-In	0.098 in	2.5 mm
JST Sales America Inc. XARR-12VF	Latch Lock	Crimp	Nylon Polyamide (PA)	Contacts Not Included	Receptacle	-25 °C	85 °C	Natural	1	Male Pin	12		0.098 in	2.5 mm
JST Sales America Inc. XARR-10V	Latch Lock	Crimp	Nylon Polyamide (PA)	Contacts Not Included	Receptacle	-25 °C	85 °C	Natural	1	Male Pin	10	Panel Mount Snap-In	0.098 in	2.5 mm
JST Sales America Inc. XARR-06VF	Latch Lock	Crimp	Nylon Polyamide (PA)	Contacts Not Included	Receptacle	-25 °C	85 °C	Natural	1	Male Pin	6		0.098 in	2.5 mm
JST Sales America Inc. XARR-09VF	Latch Lock	Crimp	Nylon Polyamide (PA)	Contacts Not Included	Receptacle	-25 °C	85 °C	Natural	1	Male Pin	9		0.098 in	2.5 mm
JST Sales America Inc. XARR-12V	Latch Lock	Crimp	Nylon Polyamide (PA)	Contacts Not Included	Receptacle	-25 °C	85 °C	Natural	1	Male Pin	12	Panel Mount Snap-In	0.098 in	2.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.24
		10	$ 0.20
		100	$ 0.15
		1000	$ 0.11
		5000	$ 0.09
		10000	$ 0.09

Description

General part information

XARR Series

4 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
