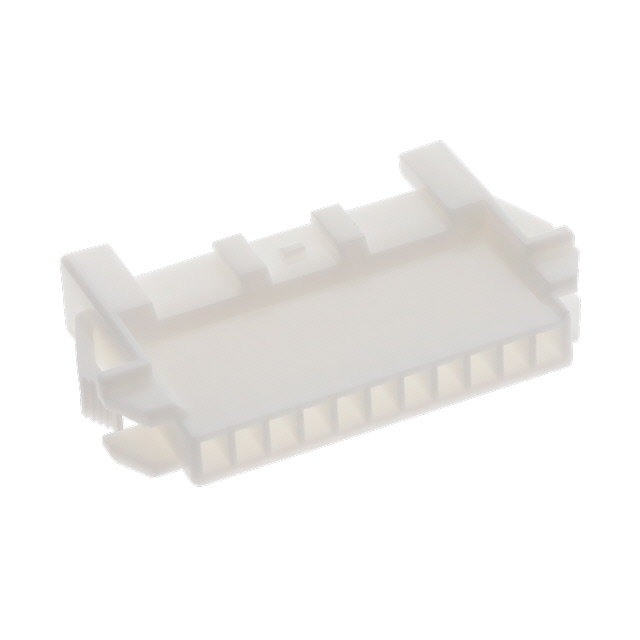

XARR-11V
ActiveJST Sales America Inc.
CONN RCPT HSG 11POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsJST Prefix Suffix Chart
XARR-11V
ActiveJST Sales America Inc.
CONN RCPT HSG 11POS 2.50MM
Deep-Dive with AI
DocumentsJST Prefix Suffix Chart
Technical Specifications
Parameters and characteristics for this part
| Specification | XARR-11V |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Positions | 11 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.99 | |
| 10 | $ 0.84 | |||
| 25 | $ 0.80 | |||
| 50 | $ 0.78 | |||
| 100 | $ 0.75 | |||
| 250 | $ 0.68 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.60 | |||
Description
General part information
XARR Series
11 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)
