37206-62B3-003 PL

Active

3M (TC)

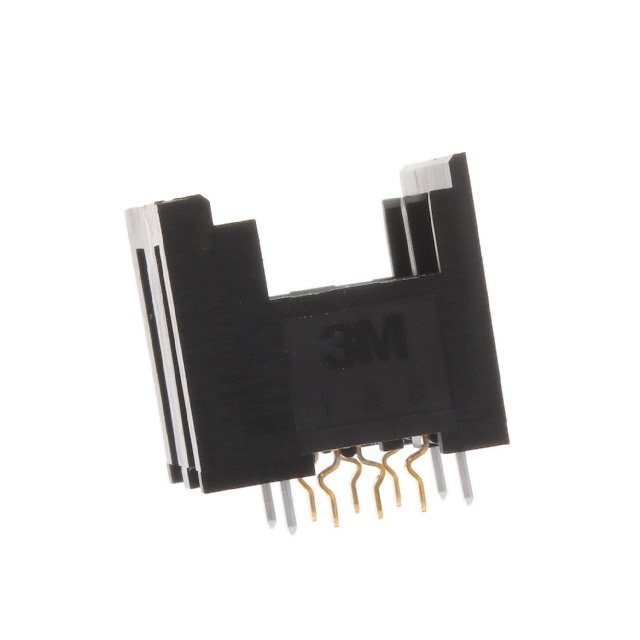

PCB RECEPTACLE, WIRE-TO-BOARD, 2 MM, 2 ROWS, 6 CONTACTS, THROUGH HOLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

37206-62B3-003 PL

Active

3M (TC)

PCB RECEPTACLE, WIRE-TO-BOARD, 2 MM, 2 ROWS, 6 CONTACTS, THROUGH HOLE MOUNT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	37206-62B3-003 PL

Applications	Automotive, Medical, General Purpose, Lighting, Industrial
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.102 in
Contact Length - Post	2.6 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Black
Insulation Height	13 mm
Insulation Height	0.512 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	6.5 mm
Row Spacing - Mating	0.256 in
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	32 V

37206 Series

Part	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Shape	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Mounting Type	Termination	Features	Number of Positions	Contact Finish - Mating	Fastening Type	Connector Type	Material Flammability Rating	Insulation Material	Applications	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Type	Contact Finish Thickness - Post	Contact Material	Number of Rows	Insulation Color	Row Spacing - Mating	Row Spacing - Mating
3M (TC) 37206-62B3-003 PL	Gold	0.102 in	2.6 mm	Square	All	0.203 Ám	8 Áin	-20 C	60 °C	Board to Cable/Wire	0.079 in	2 mm	32 V	Through Hole	Kinked Pin Solder	Board Guide	6	Gold	Latch Holder	Receptacle	UL94 V-0	Liquid Crystal Polymer (LCP)	Automotive General Purpose Industrial Lighting Medical	13 mm	0.512 in	3 A	Female Socket	Flash	Copper Alloy	2	Black	6.5 mm	0.256 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.00
		10	$ 3.06
		25	$ 2.76
		40	$ 2.62
		200	$ 2.20
		400	$ 2.04
		600	$ 1.96
		1000	$ 1.86
		2400	$ 1.71
Newark	Each	100	$ 2.52
		250	$ 2.22
		500	$ 2.16
		1000	$ 1.83

Description

General part information

37206 Series

3M™ mini-clamp socket, 372 Series (372XX-62) are boardmount connectors with right-angle solder tails that mate with the 3M Mini-Clamp Plug, 371 Series featuring IDC termination offer a time-saving, reliable and field-installable wiring solution. They are suitable for wiring applications using 3-4 wires 28 to 20AWG and requiring 32V, 3.0A max. Common applications are connecting sensors and switches to equipment.
