EW-02-12-F-D-370

Active

Samtec Inc.

CONN BOARD STACKER HDR 4 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

EW-02-12-F-D-370

Active

Samtec Inc.

CONN BOARD STACKER HDR 4 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EW-02-12-F-D-370

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	3 Áin
Contact Finish Thickness - Post (Mating)	0.076 Ám
Length - Overall Pin [x]	1.03 in
Length - Overall Pin [x]	26.162 mm
Length - Post (Mating) [x]	0.33 in
Length - Post (Mating) [x]	8.382 mm
Length - Tail	0.33 in
Length - Tail	8.382 mm
Mounting Type	Through Hole
Number of Positions	4
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

EW-02-12 Series

Part	Contact Finish - Post (Mating)	Number of Positions	Length - Tail	Length - Tail	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Termination	Number of Rows	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Color	Length - Overall Pin [x]	Length - Overall Pin [x]	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing

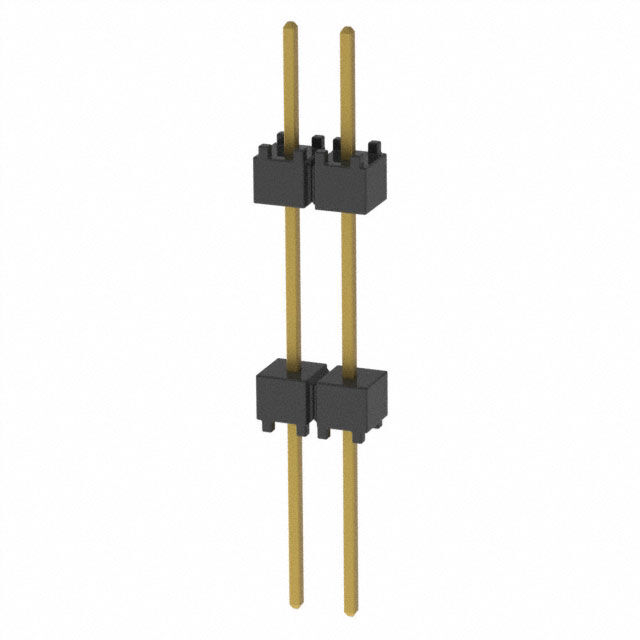

Samtec Inc. EW-02-12-G-S-500	Gold	2	0.33 in	8.382 mm	Through Hole	0.2 in	5.08 mm	Solder	1	0.5 in	12.7 mm	0.25 Ám	10 Áin	Black	1.03 in	26.162 mm	2.54 mm	0.1 in
Samtec Inc. EW-02-12-T-D-340	Tin	4	0.33 in	8.382 mm	Through Hole	0.36 in	9.144 mm	Solder	2	0.34 in	8.636 mm			Black	1.03 in	26.162 mm	2.54 mm	0.1 in	0.1 in	2.54 mm
Samtec Inc. EW-02-12-L-S-580	Gold	2	0.33 in	8.382 mm	Through Hole	0.12 in	3.048 mm	Solder	1	0.58 in	14.732 mm	0.25 Ám	10 Áin	Black	1.03 in	26.162 mm	2.54 mm	0.1 in
Samtec Inc. EW-02-12-G-D-310	Gold	4	0.33 in	8.382 mm	Through Hole	0.39 in	9.906 mm	Solder	2	0.31 in	7.874 mm	0.25 Ám	10 Áin	Black	1.03 in	26.162 mm	2.54 mm	0.1 in	0.1 in	2.54 mm
Samtec Inc. EW-02-12-T-S-550	Tin	2	0.33 in	8.382 mm	Through Hole	0.15 in	3.81 mm	Solder	1	0.55 in	13.97 mm			Black	1.03 in	26.162 mm	2.54 mm	0.1 in
Samtec Inc. EW-02-12-S-S-600	Gold	2	0.33 in	8.382 mm	Through Hole	0.1 in	2.54 mm	Solder	1	0.6 in	15.24 mm	0.76 µm	30 µin	Black	1.03 in	26.162 mm	2.54 mm	0.1 in
Samtec Inc. EW-02-12-F-D-575	Gold	4	0.33 in	8.382 mm	Through Hole	0.125 in	3.175 mm	Solder	2	0.575 in	14.605 mm	0.076 Ám	3 Áin	Black	1.03 in	26.162 mm	2.54 mm	0.1 in	0.1 in	2.54 mm
Samtec Inc. EW-02-12-F-D-370	Gold	4	0.33 in	8.382 mm	Through Hole	0.33 in	8.382 mm	Solder	2			0.076 Ám	3 Áin	Black	1.03 in	26.162 mm	2.54 mm	0.1 in	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.99

Description

General part information

EW-02-12 Series

4 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole

Documents

Technical documentation and resources

No documents available
