T1503NH80TOHXOSA1

Active

Infineon Technologies

8000 V LIGHT TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 150 MM DIA AND A HEIGHT OF 40 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T1503NH80TOHXOSA1

Active

Infineon Technologies

8000 V LIGHT TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 150 MM DIA AND A HEIGHT OF 40 MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T1503NH80TOHXOSA1

Current - Hold (Ih) (Max) [Max]	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	57000 A
Current - On State (It (AV)) (Max) [Max]	2560 A
Current - On State (It (RMS)) (Max) [Max]	2770 A
Mounting Type	Chassis Mount
Operating Temperature	120 °C
Package / Case	TO-200AF
SCR Type	Standard Recovery
Supplier Device Package	BG-T15040L-1
Voltage - Off State	8 kV
Voltage - On State (Vtm) (Max) [Max]	3 V

T1503NH80 Series

Part	SCR Type	Current - Hold (Ih) (Max) [Max]	Voltage - Off State	Operating Temperature	Current - On State (It (RMS)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Supplier Device Package	Mounting Type	Current - On State (It (AV)) (Max) [Max]	Voltage - On State (Vtm) (Max) [Max]	Package / Case
Infineon Technologies T1503NH80TOHXOSA1	Standard Recovery	100 mA	8 kV	120 °C	2770 A	57000 A	BG-T15040L-1	Chassis Mount	2560 A	3 V	TO-200AF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5685.64

Description

General part information

T1503NH80 Series

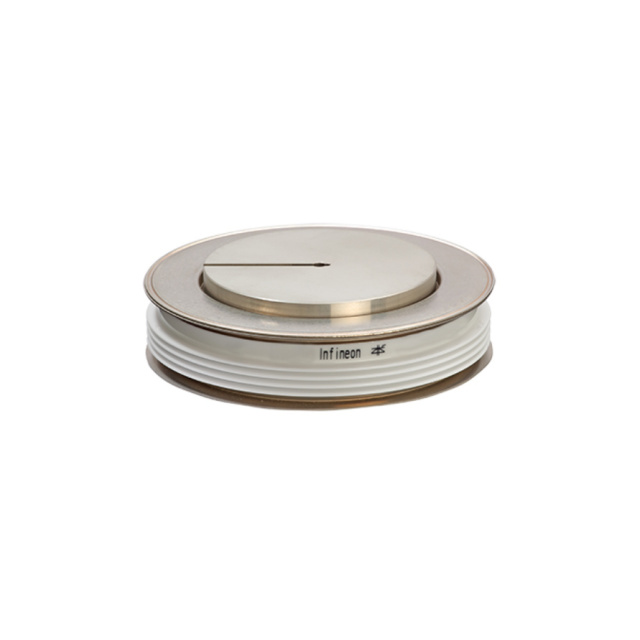

Light Triggered Thyristor discs8000 V, 1770 A with a dia of 150 mm and a height of 40 mm in high reliable, robust and hermetic sealed ceramic housing.
