24FC08T-I/ST

Active

Microchip Technology

8KB I2C EEPROM, 1MHZ 1.7-5.5V, 8-TSSOP 8 TSSOP 4.4MM T/R ROHS COMPLIANT: YES

Find alt

Alpha

24FC08T-I/ST

Active

Microchip Technology

8KB I2C EEPROM, 1MHZ 1.7-5.5V, 8-TSSOP 8 TSSOP 4.4MM T/R ROHS COMPLIANT: YES

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

24FC08 Series

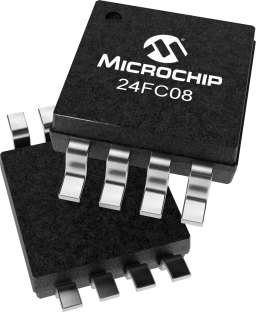

The Microchip Technology Inc. 24FC08 is a 8Kb I2C™ compatible Serial EEPROM. The device is organized as four blocks of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 µA and 1 mA, respectively. The 24FC08 also has a page write capability for up to 16 bytes of data. The 24FC08 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 UDFN and MSOP packages and is also available in the 5-lead SOT-23 package.

Technical Specifications

Parameters and characteristics for this part

Specification	24FC08T-I/ST

Access Time	450 ns
Clock Frequency	1 MHz
Memory Depth	1 K
Memory Format	EEPROM
Memory Interface (Type)	I2C
Memory Size	1 KB
Memory Type	Non-Volatile
Memory Width	8 bit
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Length	0.173 in
Package Name	8-TSSOP
Package Width	4.4 mm
Technology	EEPROM
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	1.7 V
Write Cycle Time - Page	5 ms
Write Cycle Time - Word	5 ms

24FC08 Series

8Kb I2C compatible 2-wire Serial EEPROM

Part	Qualification	Memory Type	Package Length	Package Name	Package Width	Mounting Type	Technology	Memory Format	Memory Depth	Memory Width	Memory Size	Clock Frequency	Memory Interface (Type)	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Write Cycle Time - Word	Write Cycle Time - Page	Access Time	Grade	Package / Case
Microchip Technology 24FC08T-E/ST36KVAO	AEC-Q100	Non-Volatile	0.173 in	8-TSSOP	4.4 mm	Surface Mount	EEPROM	EEPROM	1 K	8 bit	1 KB	1 MHz	I2C	125 °C	-40 °C	1.7 V	5.5 V	5 ms	5 ms	450 ns	Automotive
Microchip Technology 24FC08T-I/ST		Non-Volatile	0.173 in	8-TSSOP	4.4 mm	Surface Mount	EEPROM	EEPROM	1 K	8 bit	1 KB	1 MHz	I2C	85 °C	-40 °C	1.7 V	5.5 V	5 ms	5 ms	450 ns
Microchip Technology 24FC08T-E/Q6B36KVAO	AEC-Q100	Non-Volatile	2 mm	8-UDFN	3 mm	Surface Mount Wettable Flank	EEPROM	EEPROM	1 K	8 bit	1 KB	1 MHz	I2C	125 °C	-40 °C	1.7 V	5.5 V	5 ms	5 ms	450 ns	Automotive	8-UFDFN Exposed Pad
Microchip Technology 24FC08-I/SN		Non-Volatile	0.154 in	8-SOIC	3.9 mm	Surface Mount	EEPROM	EEPROM	1 K	8 bit	1 KB	1 MHz	I2C	85 °C	-40 °C	1.7 V	5.5 V	5 ms	5 ms	450 µs
Microchip Technology 24FC08T-E/MS		Non-Volatile	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	Surface Mount	EEPROM	EEPROM	1 K	8 bit	1 KB	1 MHz	I2C	125 °C	-40 °C	1.7 V	5.5 V	5 ms	5 ms	450 µs
Microchip Technology 24FC08T-E/OT36KVAO	AEC-Q100	Non-Volatile		SOT-23-5		Surface Mount	EEPROM	EEPROM	1 K	8 bit	1 KB	1 MHz	I2C	125 °C	-40 °C	1.7 V	5.5 V	5 ms	5 ms	450 ns	Automotive
Microchip Technology 24FC08-E/SN		Non-Volatile	0.154 in	8-SOIC	3.9 mm	Surface Mount	EEPROM	EEPROM	1 K	8 bit	1 KB	1 MHz	I2C	125 °C	-40 °C	1.7 V	5.5 V	5 ms	5 ms	450 µs
Microchip Technology 24FC08-I/P		Non-Volatile	0.3 in	8-DIP 8-PDIP	7.62 mm	Through Hole	EEPROM	EEPROM	1 K	8 bit	1 KB	1 MHz	I2C	85 °C	-40 °C	1.7 V	5.5 V	5 ms	5 ms	450 ns
Microchip Technology 24FC08-I/MS		Non-Volatile	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	Surface Mount	EEPROM	EEPROM	1 K	8 bit	1 KB	1 MHz	I2C	85 °C	-40 °C	1.7 V	5.5 V	5 ms	5 ms	450 µs
Microchip Technology 24FC08T-E/SN36KVAO	AEC-Q100	Non-Volatile	0.154 in	8-SOIC	3.9 mm	Surface Mount	EEPROM	EEPROM	1 K	8 bit	1 KB	1 MHz	I2C	125 °C	-40 °C	1.7 V	5.5 V	5 ms	5 ms	450 ns	Automotive
