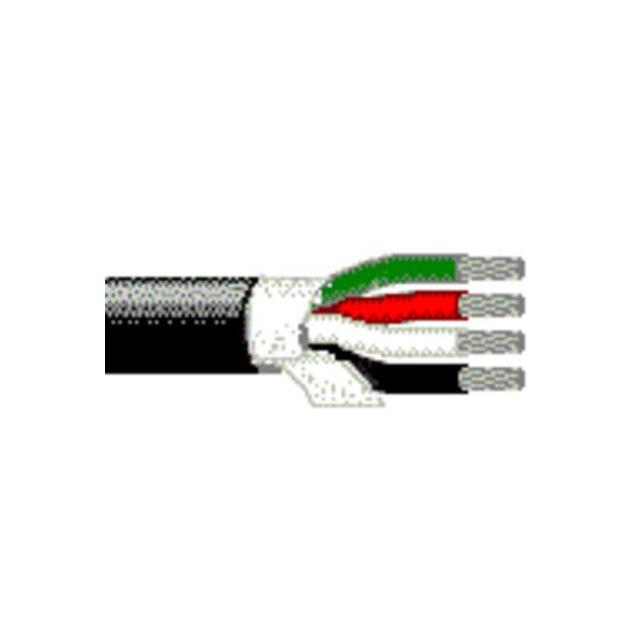

Specification	5002U1 0101000

Cable Type	Conductor, Multi
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Tinned, Copper
Conductor Strand Count	19
Conductor Strand Gauge	25 AWG
Features	Water-Blocked, Rip Cord
Jacket (Insulation) Diameter	0.377 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.029 in
Jacket Color	Black
Length	1000 ft
Number of Conductors	4
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Ratings	CL3, Style, UL
Usage	Sound, Security
Voltage	300 V
Wire Gauge	12 AWG

5002U1 Series

Part	Length	Voltage	Jacket (Insulation) Thickness	Number of Conductors	Ratings	Conductor Strand Count	Conductor Strand Gauge	Conductor Insulation	Jacket (Insulation) Diameter	Conductor Material	Operating Temperature (Min)	Operating Temperature (Max)	Jacket (Insulation) Material	Cable Type	Jacket Color	Usage	Wire Gauge	Features
Belden Inc. 5002U1 0101000	1000 ft	300 V	0.029 in	4	CL3 Style UL	19	25 AWG	Poly-Vinyl Chloride (PVC)	0.377 in	Copper Tinned	-20 °C	105 °C	Poly-Vinyl Chloride (PVC)	Conductor Multi	Black	Security Sound	12 AWG	Rip Cord Water-Blocked
