AR-AR-040-24

Active

European Thermodynamics Ltd

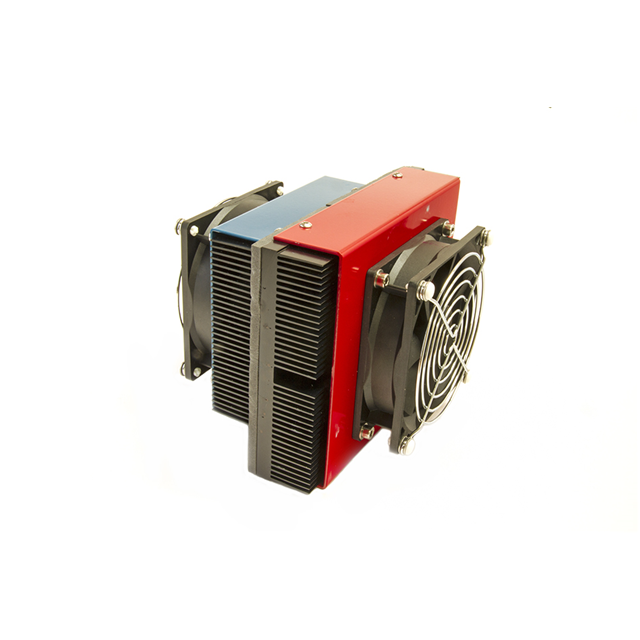

TE ASSY,AA,40W,24VDC

Search across all available documentation for this part.

Active

European Thermodynamics Ltd

TE ASSY,AA,40W,24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	AR-AR-040-24

Current	2.4 A
Dimensions - Overall [x]	400 mm
Dimensions - Overall [y]	180 mm
Dimensions - Overall [z]	189.5 mm
Fan Location	Cold Side / Warm Side
Heat Transfer Type	Air to Air
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Power - Input	57 W
Voltage	24 V

TE ASSY,AA,40W,24VDC

Part	Current	Dimensions - Overall [y]	Dimensions - Overall [z]	Dimensions - Overall [x]	Heat Transfer Type	Power - Input	Fan Location	Voltage	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
European Thermodynamics Ltd AR-AR-040-24	2.4 A	180 mm	189.5 mm	400 mm	Air to Air	57 W	Cold Side / Warm Side	24 V	-10 °C	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Air to Air Thermoelectric Assembly 37 W
