26171-33-01

Active

Orion Fans

CORD 16AWG 320C14 - C13 3.25'

Search across all available documentation for this part.

Active

Orion Fans

CORD 16AWG 320C14 - C13 3.25'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	26171-33-01	26171 Series

1st Connector	IEC 320-C14	IEC 320-C14
Approval Agency Marking	CSA, KEMA, BSI Kitemark, OVE, NEMKO, SEMKO, IMQ, CEBEC, DEMKO, NF, ESTI, T, UL, ASTA, VDE Registered, FIMKO, SAA	CSA, KEMA, BSI Kitemark, OVE, NEMKO, SEMKO, IMQ, CEBEC, DEMKO, NF, ESTI, T, UL, ASTA, VDE Registered, FIMKO, SAA
Approved Countries	Netherlands, Japan, Norway, New Zealand, United States, Sweden, Finland, Australia, Canada, United Kingdom, Europe	Netherlands, Japan, Norway, New Zealand, United States, Sweden, Finland, Australia, Canada, United Kingdom, Europe
Color	Black	Black
Cord Type	SJT	SJT
Current Rating (Amps)	13 A	13 A
Length	990.6 mm	2.01 - 990.6 mm
Length	3.25 ft	3.25 - 6.58 ft
Length	-	9.84 ft
Length	-	3 m
Number of Conductors	3	3
Operating Temperature	60 °C	60 °C
Shielding	Unshielded	Unshielded
Style	Male Pins, Female Sockets	Male Pins, Female Sockets
Voltage Rating	125 VAC	125 VAC
Wire Gauge	16 AWG	16 AWG

CORD 16AWG 320C14 - C13 9.84'

Part	Approval Agency Marking	1st Connector	Shielding	Approved Countries	Color	Length [x]	Length [x]	Style	Voltage Rating	Operating Temperature	Current Rating (Amps)	Number of Conductors	Wire Gauge	Cord Type	Length	Length
Orion Fans 26171-910-01	ASTA, BSI Kitemark, CEBEC, CSA, DEMKO, ESTI, FIMKO, IMQ, KEMA, NEMKO, NF, OVE, SAA, SEMKO, T, UL, VDE Registered	IEC 320-C14	Unshielded	Australia, Canada, Europe, Finland, Japan, Netherlands, New Zealand, Norway, Sweden, United Kingdom, United States	Black	9.84 ft	3 m	Female Sockets, Male Pins	125 VAC	60 °C	13 A	3	16 AWG	SJT
Orion Fans 26171-33-01	ASTA, BSI Kitemark, CEBEC, CSA, DEMKO, ESTI, FIMKO, IMQ, KEMA, NEMKO, NF, OVE, SAA, SEMKO, T, UL, VDE Registered	IEC 320-C14	Unshielded	Australia, Canada, Europe, Finland, Japan, Netherlands, New Zealand, Norway, Sweden, United Kingdom, United States	Black			Female Sockets, Male Pins	125 VAC	60 °C	13 A	3	16 AWG	SJT	990.6 mm	3.25 ft
Orion Fans 26171-67-01	ASTA, BSI Kitemark, CEBEC, CSA, DEMKO, ESTI, FIMKO, IMQ, KEMA, NEMKO, NF, OVE, SAA, SEMKO, T, UL, VDE Registered	IEC 320-C14	Unshielded	Australia, Canada, Europe, Finland, Japan, Netherlands, New Zealand, Norway, Sweden, United Kingdom, United States	Black			Female Sockets, Male Pins	125 VAC	60 °C	13 A	3	16 AWG	SJT	2.01 m	6.58 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

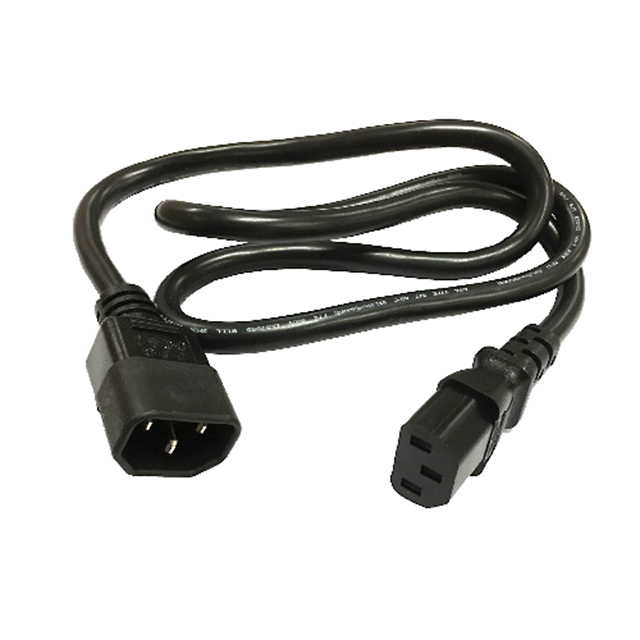

3.25' (990.6mm) Power Cord Black IEC 320-C14 To IEC 320-C13 SJT
