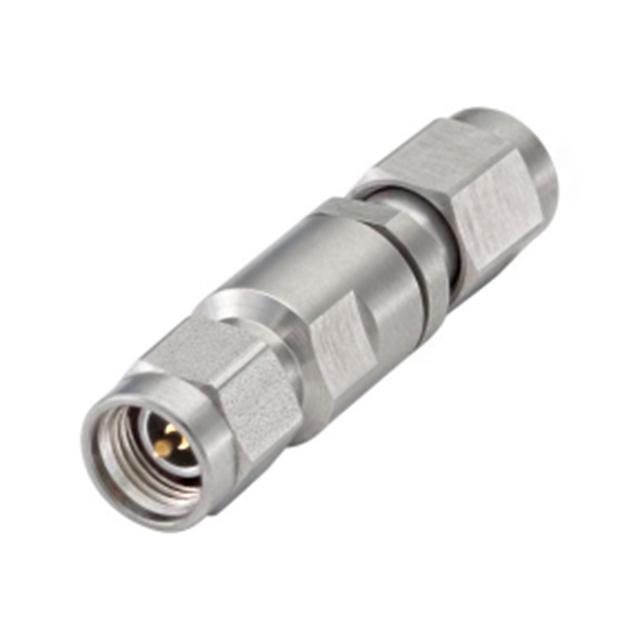

03S109-S00S3
ActiveRosenberger
HEADER -40℃~+85℃ 26.5GHZ 50Ω COAXIAL CONNECTORS (RF) ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
03S109-S00S3
ActiveRosenberger
HEADER -40℃~+85℃ 26.5GHZ 50Ω COAXIAL CONNECTORS (RF) ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 03S109-S00S3 |
|---|---|
| Adapter Series | RPC-3.50, RPC-2.40 |
| Adapter Type | Plug to Plug |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 3.5mm Plug, Male Pin |
| Convert To (Adapter End) | 2.4mm (APC-2.4, OS-50) Plug, Male Pin |
| Dielectric Material | Polystyrene (PS), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 26.5 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.26 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
03S109 Series
Adapter Coaxial Connector 3.5mm Plug, Male Pin To 2.4mm (APC-2.4, OS-50) Plug, Male Pin 50 Ohms
