8087-48MM

Obsolete

3M (TC)

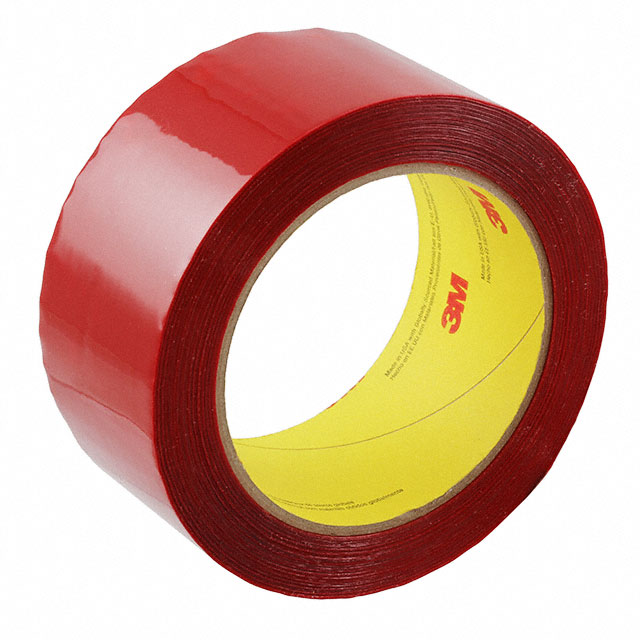

TAPE SEALING RED 1.89"X54.7YDS

Search across all available documentation for this part.

Obsolete

3M (TC)

TAPE SEALING RED 1.89"X54.7YDS

Technical Specifications

Parameters and characteristics for this part

Specification	8087-48MM

Adhesive	Acrylic
Backing, Carrier	Polypropylene Film
Color	Red
Length	50 m
Length	54.7 yds
Length	164 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Sealing
Temperature Range [Max]	220 °F, 221 °F
Temperature Range [Min]	-40 °F
Thickness	3 mils
Thickness	0.003 in
Thickness	0.076 mm
Thickness - Adhesive	1.5 mils
Thickness - Adhesive	0.0015 in
Thickness - Adhesive	0.038 mm
Thickness - Backing, Carrier [x]	0.038 mm
Thickness - Backing, Carrier [x]	1.5 mils
Thickness - Backing, Carrier [x]	0.0015 in
Usage	Sealing
Width [y]	48 mm
Width [y]	1.89 in

Part	Thickness - Backing, Carrier [x]	Thickness - Backing, Carrier [x]	Thickness - Backing, Carrier [x]	Thickness	Thickness	Thickness	Adhesive	Color	Backing, Carrier	Width	Width	Width	Shelf Life	Length	Length	Length	Shelf Life Start	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Tape Type	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Temperature Range [Max]	Temperature Range [Min]	Width [y]	Width [y]	Usage
3M (TC) 8087-1.875-5	0.038 mm	1.5 mils	0.0015 in	3 mils	0.003 in	0.076 mm	Acrylic	Red	Polypropylene Film	1 7/8"	47.63 mm	1.88 in	18 Months	4.6 m	15 ft	5 yd	Date of Manufacture	70 °F	21 °C	Sealing	1.5 mils	0.0015 in	0.038 mm	49 °C 120 °F	-10 °C
3M (TC) 8087-48MM	0.038 mm	1.5 mils	0.0015 in	3 mils	0.003 in	0.076 mm	Acrylic	Red	Polypropylene Film				18 Months	50 m	164 ft	54.7 yds	Date of Manufacture	70 °F	21 °C	Sealing	1.5 mils	0.0015 in	0.038 mm	220 °F 221 °F	-40 °F	48 mm	1.89 in	Sealing
