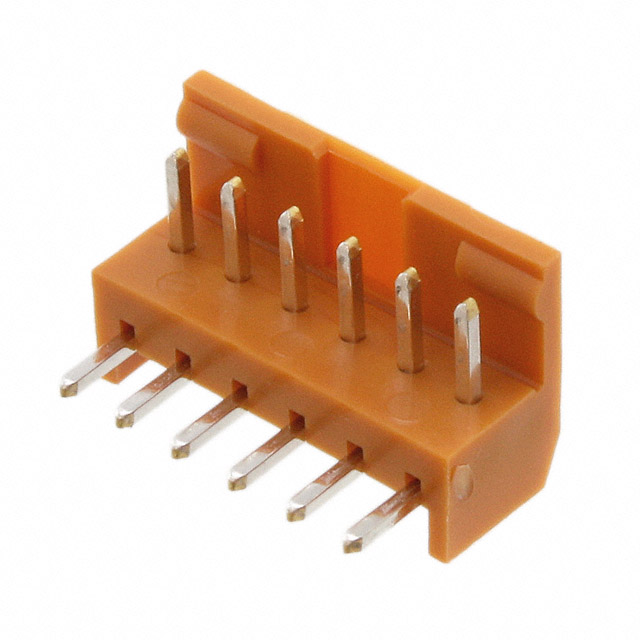

IL-G-6P-S3L2-SA

Active

JAE Electronics

CONN HEADER R/A 6POS 2.5MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER R/A 6POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	IL-G-6P-S3L2-SA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Brown
Insulation Height	6 mm
Insulation Height	0.236 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Style	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Insulation Color	Mated Stacking Heights	Termination	Contact Shape	Contact Length - Mating	Contact Length - Mating	Fastening Type	Number of Rows	Contact Material	Contact Finish - Mating	Number of Positions Loaded	Contact Type	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Connector Type	Number of Positions	Insulation Material	Material Flammability Rating	Insulation Height	Insulation Height	Contact Finish - Post
JAE Electronics IL-G-6P-S3T2-SA-1	85 °C	-40 °C	0.378 in	9.6 mm	Board to Cable/Wire	3.5 mm	0.138 in	Through Hole	0.099 µm	3.9 µin	Shrouded - 1 Wall	Brown	10 mm	Solder	Square	4 mm	0.157 in	Friction Lock	1	Brass	Gold	All	Male Pin	2.5 mm	0.098 in	3 A	Header	6	Polyamide (PA66) Nylon 6/6	UL94 V-0	0.28 in	7.1 mm
JAE Electronics IL-G-6P-S3L2-SA	85 °C	-40 °C			Board to Cable/Wire	3.5 mm	0.138 in	Through Hole Right Angle			Shrouded - 1 Wall	Brown		Solder	Square	4 mm	0.157 in	Friction Lock	1	Brass		All	Male Pin	2.5 mm	0.098 in	3 A	Header	6	Polyamide (PA66) Nylon 6/6	UL94 V-0	0.236 in	6 mm	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 6 position 0.098" (2.50mm)
