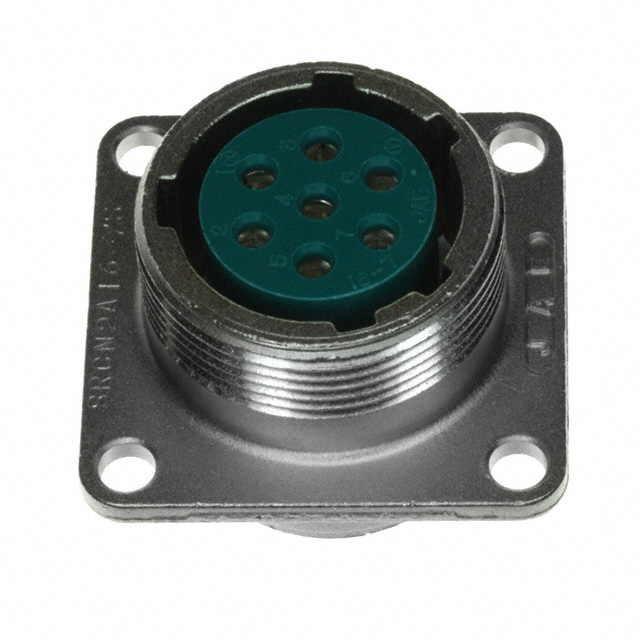

SRCN2A16-7S

Active

JAE Electronics

CONN RCPT FMALE 7P SOLDER CUP

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT FMALE 7P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SRCN2A16-7S

Applications	Communication Systems, Telecommunications, Test Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Insert Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Voltage Rating	350 V, 250 VAC

Part	Shell Finish	Contact Finish - Mating	Connector Type	Number of Positions	Insert Material	Orientation	Color	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Shell Size - Insert	Material Flammability Rating	Voltage Rating	Primary Material	Contact Material	Applications	Current Rating (Amps)
JAE Electronics SRCN2A16-10S	Nickel	Silver	Receptacle Female Sockets	10	Plastic	N	Silver	Aluminum Alloy	-25 °C	85 °C	Flange	16-10	UL94 V-0	250 VAC 350 V	Metal	Copper Alloy	Communication Systems Telecommunications Test Equipment & Measurement	5 A
JAE Electronics SRCN2A16-7S	Nickel	Silver	Receptacle Female Sockets	7	Plastic	N	Silver	Aluminum Alloy	-25 °C	85 °C	Flange		UL94 V-0	250 VAC 350 V	Metal	Copper Alloy	Communication Systems Telecommunications Test Equipment & Measurement	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder Cup
