Technical Specifications

Parameters and characteristics for this part

Specification	STM32L562RET6Q

Connectivity	LINbus, SAI, IrDA, USB, SPI, CANbus, FIFO, MMC/SD, UART/USART, SMBus, I2C
Core Processor	ARM® Cortex®-M33
Core Size	32-Bit
Data Converters	D/A 2x12b, A/D 15x12b SAR
Mounting Type	Surface Mount
Number of I/O	47
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External, Internal

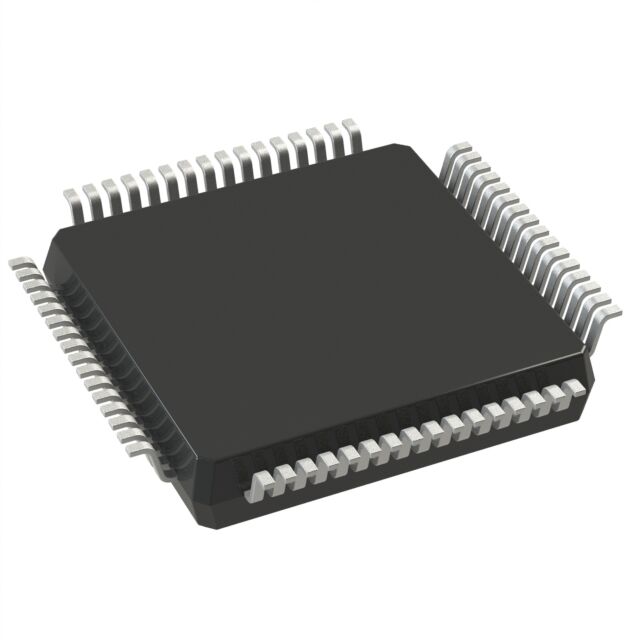

Package / Case	64-LQFP
Peripherals	Brown-out Detect/Reset, WDT, PWM, DMA
Program Memory Size	512 KB
Program Memory Type	FLASH
RAM Size	256 K
Speed	110 MHz
Supplier Device Package	64-LQFP (10x10)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.71 V

STM32L562RE Series

Ultra-low-power with FPU Arm Cortex-M33 with Trust Zone, MCU 110 MHz with 512 kbytes of Flash memory

Part	Number of I/O	Speed	RAM Size	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Peripherals	Core Size	Program Memory Size	Connectivity	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Data Converters	Program Memory Type	Package / Case	Core Processor	Oscillator Type	Mounting Type
STMicroelectronics STM32L562RET6Q	47	110 MHz	256 K	3.6 V	1.71 V	Brown-out Detect/Reset DMA PWM WDT	32-Bit	512 KB	CANbus FIFO I2C IrDA LINbus MMC/SD SAI SMBus SPI UART/USART USB	64-LQFP (10x10)	85 °C	-40 °C	A/D 15x12b SAR D/A 2x12b	FLASH	64-LQFP	ARM® Cortex®-M33	External Internal	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	960	$ 6.22

Description

General part information

STM32L562RE Series

The STM32L562xx devices are an ultra-low-power microcontrollers family (STM32L5 Series) based on the high-performance Arm®Cortex®-M33 32-bit RISC core. They operate at a frequency of up to 110 MHz.

The Cortex®-M33 core features a single-precision floating-point unit (FPU), which supports all the Arm®single-precision data-processing instructions and all the data types. The Cortex®-M33 core also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) which enhances the application’s security.

These devices embed high-speed memories (512 Kbytes of Flash memory and 256 Kbytes of SRAM), a flexible external memory controller (FSMC) for static memories (for devices with packages of 100 pins and more), an Octo-SPI Flash memories interface (available on all packages) and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.
