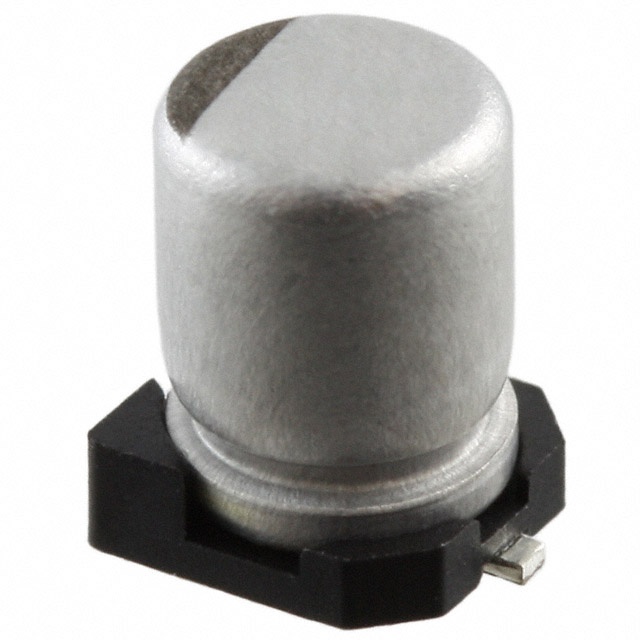

EDK225M050A9BAA

Active

KEMET

CAP ALUM 2.2UF 20% 50V SMD

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 2.2UF 20% 50V SMD

Technical Specifications

Parameters and characteristics for this part

Specification	EDK225M050A9BAA

Applications	General Purpose
Capacitance	2.2 µF
Height - Seated (Max) [Max]	5.65 mm
Height - Seated (Max) [Max]	0.222 "
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - SMD
Polarization	Polar
Ripple Current @ Low Frequency	16 mA
Size / Dimension [diameter]	4 mm
Size / Dimension [diameter]	0.157 in
Surface Mount Land Size [x]	4.3 mm
Surface Mount Land Size [x]	0.169 in
Surface Mount Land Size [y]	0.169 "
Surface Mount Land Size [y]	4.3 mm
Tolerance	20 %
Voltage - Rated	50 VDC

Part	Mounting Type	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Package / Case	Polarization	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Voltage - Rated	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Tolerance
KEMET EDK225M050A9BAA	Surface Mount	2000 Hrs	5.65 mm	0.222 "	General Purpose	Radial Can - SMD	Polar	2.2 µF	85 °C	-40 °C	4 mm	0.157 in	16 mA	50 VDC	4.3 mm	0.169 "	0.169 in	4.3 mm	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
