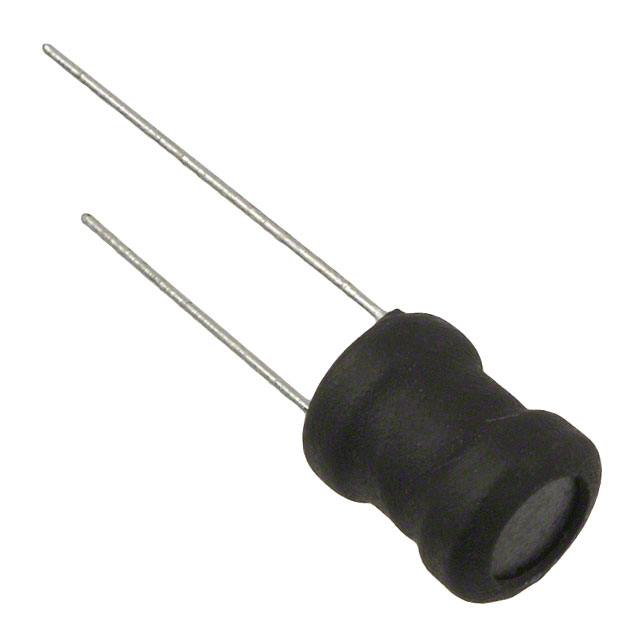

RLB0914-101KL

Active

Bourns Inc.

FIXED IND 100UH 1.1A 280 MOHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN

RLB0914-101KL

Active

Bourns Inc.

FIXED IND 100UH 1.1A 280 MOHM TH

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RLB0914-101KL

Current - Saturation (Isat)	2.1 A
Current Rating (Amps)	1.1 A
DC Resistance (DCR) [Max]	280 mOhm
Frequency - Self Resonant	3.5 MHz
Height - Seated (Max) [Max] [z]	13 mm
Height - Seated (Max) [Max] [z]	0.512 "
Inductance	100 µH
Inductance Frequency - Test	796 kHz
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Vertical Cylinder
Q @ Freq	30, 796 kHz
Shielding	Unshielded
Size / Dimension [diameter]	8.7 mm
Size / Dimension [diameter]	0.343 in
Tolerance	10 %
Type	Wirewound, Drum Core

RLB0914 Series

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Material - Core	Shielding	Type	Frequency - Self Resonant	Q @ Freq	Package / Case	DC Resistance (DCR) [Max]	Tolerance	Mounting Type	Current - Saturation (Isat)	Current Rating (Amps)	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR)
Bourns Inc. RLB0914-4R7ML	8.7 mm	0.343 in	125 °C	-40 °C	4.7 ÁH	Ferrite	Unshielded	Drum Core Wirewound	50 MHz	7.96 MHz 20	Radial Vertical Cylinder	33 mOhm	20 %	Through Hole	10 A	3.2 A	7.96 MHz	13 mm	0.512 "
Bourns Inc. RLB0914-270KL	8.7 mm	0.343 in	125 °C	-40 °C	27 µH	Ferrite	Unshielded	Drum Core Wirewound	8.5 MHz	2.52 MHz 40	Radial Vertical Cylinder		10 %	Through Hole	4 A	1.8 A	2.52 MHz	13 mm	0.512 "	110 mOhm
Bourns Inc. RLB0914-820KL	8.7 mm	0.343 in	125 °C	-40 °C	82 µH	Ferrite	Unshielded	Drum Core Wirewound	4 MHz	2.52 MHz 30	Radial Vertical Cylinder	230 mOhm	10 %	Through Hole	2.5 A	1.28 A	2.52 MHz	13 mm	0.512 "
Bourns Inc. RLB0914-222KL	8.7 mm	0.343 in	125 °C	-40 °C	2.2 mH	Ferrite	Unshielded	Drum Core Wirewound			Radial Vertical Cylinder		10 %	Through Hole			2.52 MHz	13 mm	0.512 "
Bourns Inc. RLB0914-390KL	8.7 mm	0.343 in	125 °C	-40 °C	39 µH	Ferrite	Unshielded	Drum Core Wirewound	7 MHz	2.52 MHz 30	Radial Vertical Cylinder	130 mOhm	10 %	Through Hole	3.4 A	1.6 A	2.52 MHz	13 mm	0.512 "
Bourns Inc. RLB0914-101KL	8.7 mm	0.343 in	125 °C	-40 °C	100 µH	Ferrite	Unshielded	Drum Core Wirewound	3.5 MHz	30 796 kHz	Radial Vertical Cylinder	280 mOhm	10 %	Through Hole	2.1 A	1.1 A	796 kHz	13 mm	0.512 "
Bourns Inc. RLB0914-3R3ML	8.7 mm	0.343 in	125 °C	-40 °C	3.3 µH	Ferrite	Unshielded	Drum Core Wirewound		7.96 MHz 20	Radial Vertical Cylinder		20 %	Through Hole	11.3 A	3.6 A	7.96 MHz	13 mm	0.512 "	27 mOhm
Bourns Inc. RLB0914-271KL	8.7 mm	0.343 in	125 °C	-40 °C	270 µH	Ferrite	Unshielded	Drum Core Wirewound	2.2 MHz	20 796 kHz	Radial Vertical Cylinder	680 mOhm	10 %	Through Hole	1.4 A	770 mA	796 kHz	13 mm	0.512 "
Bourns Inc. RLB0914-560KL	8.7 mm	0.343 in	125 °C	-40 °C	56 µH	Ferrite	Unshielded	Drum Core Wirewound	5 MHz	2.52 MHz 30	Radial Vertical Cylinder		10 %	Through Hole	3 A	1.5 A	2.52 MHz	13 mm	0.512 "	200 mOhm
Bourns Inc. RLB0914-6R8ML	8.7 mm	0.343 in	125 °C	-40 °C	6.8 µH	Ferrite	Unshielded	Drum Core Wirewound	30 MHz	7.96 MHz 20	Radial Vertical Cylinder		20 %	Through Hole	8.5 A	3 A	7.96 MHz	13 mm	0.512 "	39 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.42
		10	$ 0.36
		200	$ 0.27
		1000	$ 0.19
		5000	$ 0.18
		10000	$ 0.18
Newark	Each	1	$ 0.45
		10	$ 0.33
		25	$ 0.31
		50	$ 0.29
		100	$ 0.27

Description

General part information

RLB0914 Series

100 µH Unshielded Drum Core, Wirewound Inductor 1.1 A 280mOhm Max Radial, Vertical Cylinder
