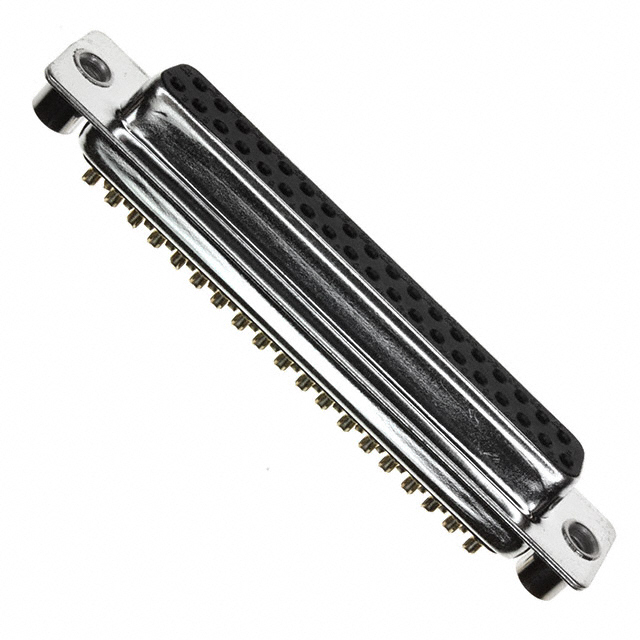

171-037-202L021

Obsolete

MH Connectors

CONN D-SUB RCPT 37POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Backshell Reference Guide

171-037-202L021

Obsolete

MH Connectors

CONN D-SUB RCPT 37POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet Backshell Reference Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	171-037-202L021

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Number of Positions	37
Number of Rows	2
Shell Size, Connector Layout	4 (DC, C)
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	20 AWG

171-037 Series

Part	Flange Feature	Contact Finish Thickness	Connector Style	Contact Form	Shell Size, Connector Layout	Number of Positions	Contact Finish	Mounting Type	Number of Rows	Contact Type	Color	Features	Contact Material	Current Rating (Amps)	Dielectric Material	Shell Material, Finish	Connector Type	Material Flammability Rating	Termination	Voltage Rating	Wire Gauge [Min]	Wire Gauge [Max]
MH Connectors 171-037-113R911	Board Side (4-40) Mating Side Female Screwlock (4-40)	Flash	D-Sub	Stamped	4 (DC C)	37	Gold	Panel Mount Through Hole	2	Signal	Black	Board Lock Grounding Indents	Brass	5 A	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel	Male Pins Plug	UL94 V-0	Solder
MH Connectors 171-037-213R051	4-40 Board Side	Flash	D-Sub	Stamped	4 (DC C)	37	Gold	Panel Mount Through Hole	2	Signal	Black		Brass	5 A	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel	Receptacle Female Sockets	UL94 V-0	Solder	500 V
MH Connectors 171-037-103L021	Cable Side	Flash	D-Sub	Stamped	4 (DC C)	37	Gold		2	Signal	Black	Grounding Indents	Copper Alloy	5 A	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Male Pins Plug	UL94 V-0			20 AWG	28 AWG
MH Connectors 171-037-102L001	Housing/Shell (Unthreaded)	Flash	D-Sub	Stamped	4 (DC C)	37	Gold		2	Signal	Black	Grounding Indents	Copper Alloy	5 A	Polybutylene Terephthalate (PBT) Glass Filled		Male Pins Plug	UL94 V-0			20 AWG	28 AWG
MH Connectors 171-037-201L031	4-40	Flash	D-Sub	Stamped	4 (DC C)	37	Gold		2	Signal	Black			5 A	Polybutylene Terephthalate (PBT)	Steel Yellow Chromate Plated Zinc	Receptacle Female Sockets	UL94 V-0			20 AWG	28 AWG
MH Connectors 171-037-212-011	4-40 Board Side	Flash	D-Sub	Stamped	4 (DC C)	37	Gold	Panel Mount Through Hole	2	Signal	Black			5 A	Polybutylene Terephthalate (PBT)		Receptacle Female Sockets	UL94 V-0	Solder
MH Connectors 171-037-102-031	4-40	Flash	D-Sub	Stamped	4 (DC C)	37	Gold		2	Signal	Black	Grounding Indents		5 A	Polybutylene Terephthalate (PBT)		Male Pins Plug	UL94 V-0			20 AWG	28 AWG
MH Connectors 171-037-112-001	Housing/Shell (Unthreaded)	Flash	D-Sub	Stamped	4 (DC C)	37	Gold	Panel Mount Through Hole	2	Signal	Black	Grounding Indents		5 A	Polybutylene Terephthalate (PBT)		Male Pins Plug	UL94 V-0	Solder
MH Connectors 171-037-113R051	4-40 Board Side	Flash	D-Sub	Stamped	4 (DC C)	37	Gold	Panel Mount Through Hole	2	Signal	Black	Board Lock Grounding Indents	Brass	5 A	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel	Male Pins Plug	UL94 V-0	Solder	500 V
MH Connectors 171-037-102-011	Cable Side	Flash	D-Sub	Stamped	4 (DC C)	37	Gold		2	Signal	Black	Grounding Indents		5 A	Polybutylene Terephthalate (PBT)		Male Pins Plug	UL94 V-0			20 AWG	28 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

171-037 Series

37 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Datasheet

Backshell Reference Guide

Datasheet
