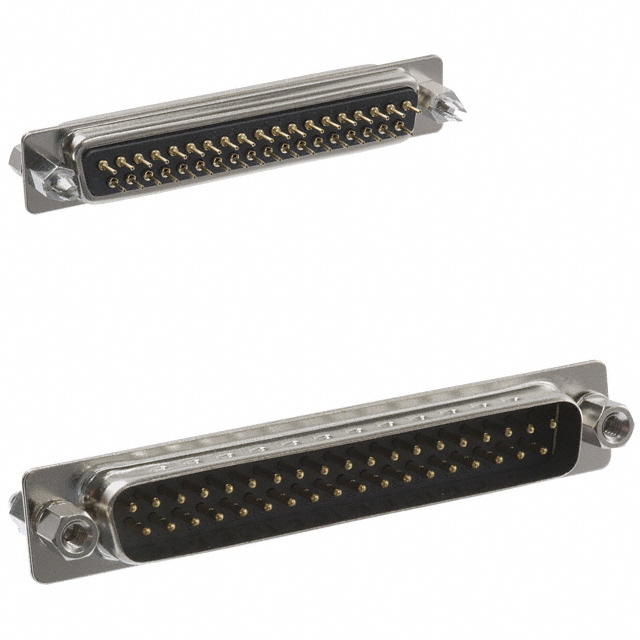

D SUB CONNECTOR, DB37, 37 CONTACTS, PLUG, SOLDER, DC, 171 SERIES, STEEL BODY

171-037-113R911

Active

NorComp Inc.

D SUB CONNECTOR, DB37, 37 CONTACTS, PLUG, SOLDER, DC, 171 SERIES, STEEL BODY

Description Specifications Series Pricing CAD Documents

Description

General part information

171-037 Series

The 171 series high performance Dip Solder D-sub Connectors with stamped contacts. It has brass male pins contact, phosphor bronze female pins contact with gold flash on entire contact-plating, glass-filled thermoplastic insulator and steel, nickel plated shell.

Technical Specifications

Parameters and characteristics for this part

Specification	171-037-113R911

Color	Black
Connector Layout	DC, C
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Grounding Indents, Board Lock
Finish	Nickel Plated
Flange Feature	Board Side (4-40), Mating Side, Female Screwlock (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole
Number of Positions	37 pos
Number of Rows	2
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-50 °C
Shell Material	Steel
Shell Size	4
Termination	Solder

171-037 Series

Part	Shell Material	Finish	Shell Size	Connector Layout	Material Flammability Rating	Current Rating	Contact Finish Thickness (string set options)	Contact Finish Thickness	Contact Type	Number of Positions	Flange Feature	Features	Number of Rows	Mounting Type	Connector Style	Connector Type	Contact Finish	Termination	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Contact Form	Color	Voltage Rating	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Shell Material, Finish
NorComp Inc. 171-037-113R911	Steel	Nickel Plated	4	C DC	UL94 V-0	5 A	Flash	Flash	Signal	37 pos	Board Side (4-40) Female Screwlock (4-40) Mating Side	Board Lock Grounding Indents	2	Panel Mount Through Hole	D-Sub	Male Pins Plug	Gold	Solder	Brass	-50 °C	100 °C	Nylon 9T Polyamide (PA9T)	Stamped	Black
NorComp Inc. 171-037-213R051	Steel	Nickel Plated	4	C DC	UL94 V-0	5 A	Flash	Flash	Signal	37 pos	Board Side (4-40)	Board Lock	2	Panel Mount Through Hole	D-Sub	Female Sockets Receptacle	Gold	Solder	Brass	-50 °C	100 °C	Nylon 9T Polyamide (PA9T)	Stamped	Black	500 V
NorComp Inc. 171-037-103L021	Steel	Nickel Plated	4	C DC	UL94 V-0	5 A	Flash	Flash	Signal	37 pos	Cable Side (4-40)	Grounding Indents	2	Panel Mount	D-Sub	Male Pins Plug	Gold	Solder Cup	Copper Alloy	-50 °C	100 °C	Glass Filled Polybutylene Terephthalate (PBT)	Stamped	Black		19.5 AWG	28 AWG
NorComp Inc. 171-037-202L001	Steel	Tin Plated	4	C DC	UL94 V-0	5 A	Flash	Flash	Signal	37 pos	Housing Shell (Unthreaded)		2	Panel Mount	D-Sub	Female Sockets Receptacle	Gold	Solder Cup		-50 °C	100 °C	Polybutylene Terephthalate (PBT)	Stamped	Black		19.5 AWG	28 AWG
NorComp Inc. 171-037-102L001	Steel	Tin Plated	4	C DC	UL94 V-0	5 A	Flash	Flash	Signal	37 pos	Housing Shell (Unthreaded)	Grounding Indents	2	Panel Mount	D-Sub	Male Pins Plug	Gold	Solder Cup	Copper Alloy	-50 °C	100 °C	Glass Filled Polybutylene Terephthalate (PBT)	Stamped	Black		19.5 AWG	28 AWG
NorComp Inc. 171-037-201L031			4	C DC	UL94 V-0	5 A	Flash	Flash	Signal	37 pos	Mating Side (4-40)		2	Panel Mount	D-Sub	Female Sockets Receptacle	Gold	Solder Cup		-50 °C	100 °C	Polybutylene Terephthalate (PBT)	Stamped	Black		19.5 AWG	28 AWG	Steel Yellow Chromate Plated Zinc
NorComp Inc. 171-037-212-011	Steel	Tin Plated	4	C DC	UL94 V-0	5 A	Flash	Flash	Signal	37 pos	Board Side (4-40)		2	Panel Mount Through Hole	D-Sub	Female Sockets Receptacle	Gold	Solder		-50 °C	100 °C	Polybutylene Terephthalate (PBT)	Stamped	Black
NorComp Inc. 171-037-102-031	Steel	Tin Plated	4	C DC	UL94 V-0	5 A	Flash	Flash	Signal	37 pos	Mating Side (4-40)	Grounding Indents	2	Panel Mount	D-Sub	Male Pins Plug	Gold	Solder Cup		-50 °C	100 °C	Polybutylene Terephthalate (PBT)	Stamped	Black		19.5 AWG	28 AWG
NorComp Inc. 171-037-112-001	Steel	Tin Plated	4	C DC	UL94 V-0	5 A	Flash	Flash	Signal	37 pos	Housing Shell (Unthreaded)	Grounding Indents	2	Panel Mount Through Hole	D-Sub	Male Pins Plug	Gold	Solder		-50 °C	100 °C	Polybutylene Terephthalate (PBT)	Stamped	Black
NorComp Inc. 171-037-113R051	Steel	Nickel Plated	4	C DC	UL94 V-0	5 A	Flash	Flash	Signal	37 pos	Board Side (4-40)	Board Lock Grounding Indents	2	Panel Mount Through Hole	D-Sub	Male Pins Plug	Gold	Solder	Brass	-50 °C	100 °C	Nylon 9T Polyamide (PA9T)	Stamped	Black	500 V
