SB-1B-D Series

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Termination Style	Voltage Rating - DC	Actuator Type	Actuator Marking	Current Rating	Color - Actuator/Cap	Circuit	Panel Cutout Diameter	Panel Cutout Shape	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Switch Function	Type
Switch Components SB-1B-DC-3-B	10000 Cycles	6000 Cycles	Screw Terminal	12 V	Button Round Rubber Cap	No Marking	60 A	Black	SPST-NO	16 mm	Circular	85 °C	-25 °C	Panel Mount Rear	Off-Mom	Standard
Switch Components SB-1B-DC-3-C	10000 Cycles	6000 Cycles	Screw Terminal	12 V	Metal Plunger Round	No Marking	60 A	Silver	SPST-NO	16 mm	Circular	85 °C	-25 °C	Panel Mount Rear	Off-Mom	Standard

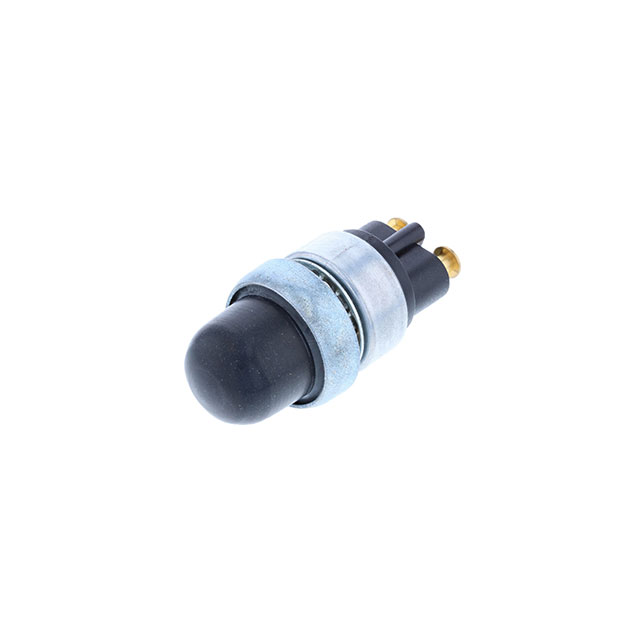

Switch Components SB-1B-DC-8-B	10000 Cycles	6000 Cycles	Solder Turret	12 V	Button Round Rubber Cap	No Marking	60 A	Black	SPST-NO	16 mm	Circular	85 °C	-20 °C	Panel Mount Rear	Off-Mom	Standard
Switch Components SB-1B-DC-3-R	10000 Cycles	6000 Cycles	Screw Terminal	12 V	Button Round Rubber Cap	No Marking	60 A	Red	SPST-NO	16 mm	Circular	85 °C	-25 °C	Panel Mount Rear	Off-Mom	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
