PL155-47

Active

Remington Industries

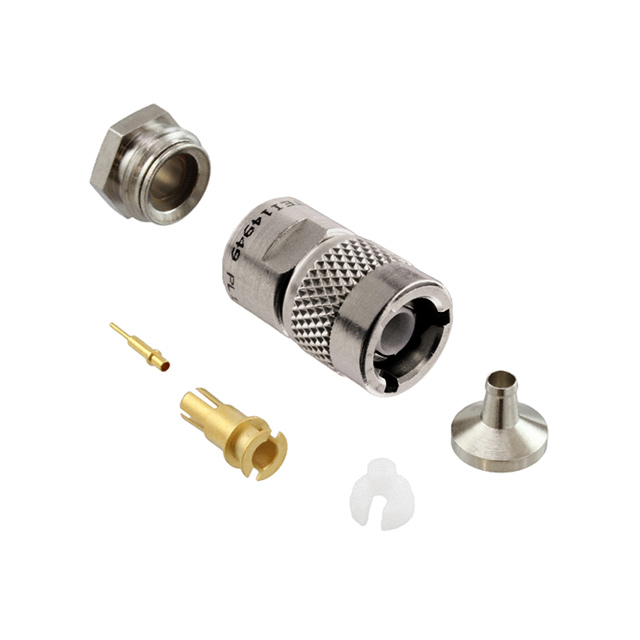

TRS PL155-47 TWINAXIAL CONNECTOR

Search across all available documentation for this part.

Active

Remington Industries

TRS PL155-47 TWINAXIAL CONNECTOR

Technical Specifications

Parameters and characteristics for this part

TRS PL155-47 TWINAXIAL CONNECTOR

Part	Shield Termination	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Housing Color	Mating Cycles	Voltage Rating	Mounting Type	Connector Style	Connector Type	Number of Ports	Body Finish	Frequency - Max [Max]	Impedance	Cable Group	Center Contact Plating	Contact Termination	Features	Body Material
Remington Industries PL155-47	Wrench Clamp	Beryllium Copper	-65 ░C	200 °C	Bayonet Lock	Silver	500	400 V	Free Hanging (In-Line)	TRS, Twinaxial/Triaxial	Plug, Male Pin (Concentric)	1	Nickel	500 MHz	Non-Constant	M17/176-00002	Gold	Solder	Three Lug	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 93.29

General part information

TRS, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Solder

Technical documentation and resources
