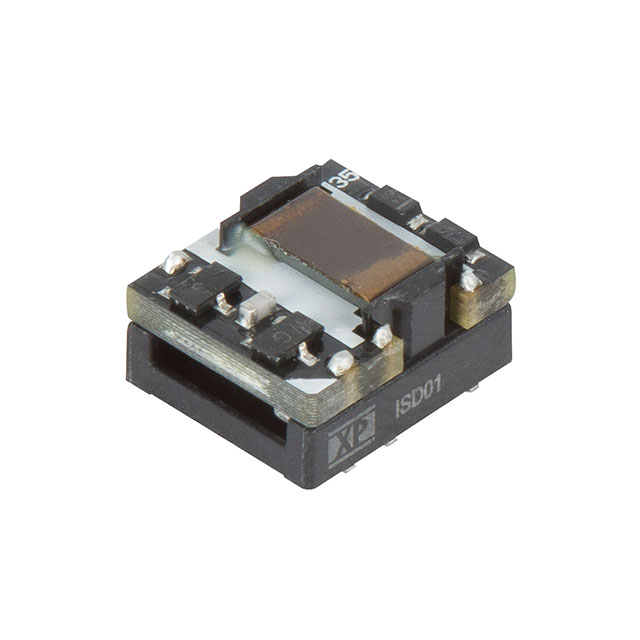

ISD0103S05
ObsoleteXP POWER
DC-DC CONVERTER, 5V, 0.2A
Deep-Dive with AI
Search across all available documentation for this part.
ISD0103S05
ObsoleteXP POWER
DC-DC CONVERTER, 5V, 0.2A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ISD0103S05 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 75 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [x] | 12.7 mm |
| Size / Dimension [y] | 11 mm |
| Size / Dimension [y] | 0.44 in |
| Size / Dimension [z] | 0.26 " |
| Size / Dimension [z] | 6.6 mm |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 3.63 V |
| Voltage - Input (Min) [Min] | 2.97 V |
| Voltage - Isolation | 4.2 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ISD0103 Series
Isolated Module DC DC Converter 1 Output 5V 200mA 2.97V - 3.63V Input
