Technical Specifications
Parameters and characteristics for this part
| Specification | STLD125N4F6AG |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 120 A |
| Drain to Source Voltage (Vdss) | 40 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 6.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] [custom] | 91 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 5600 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |

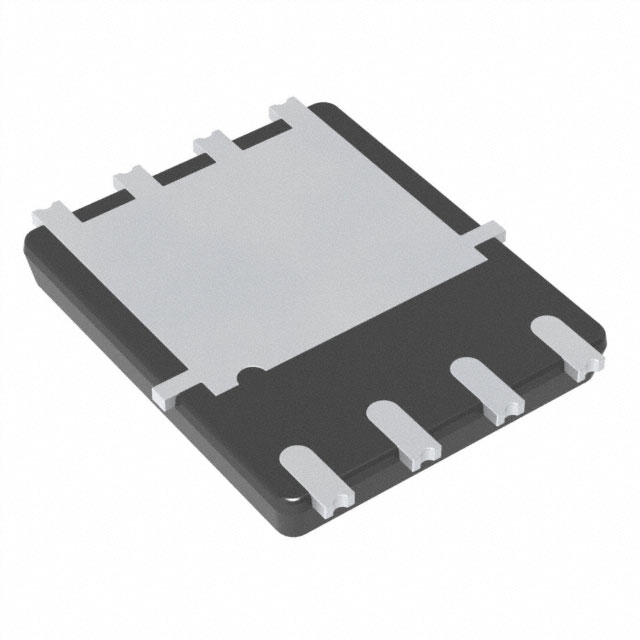

| Package / Case | 8-PowerWDFN |
| Power Dissipation (Max) | 130 W |
| Rds On (Max) @ Id, Vgs [Max] | 3 mOhm |
| Supplier Device Package | PowerFlat™ (5x6) Dual Side |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.72 | |
| 10 | $ 2.28 | |||
| 100 | $ 1.85 | |||
| 500 | $ 1.64 | |||
| 1000 | $ 1.40 | |||
| Digi-Reel® | 1 | $ 2.72 | ||
| 10 | $ 2.28 | |||
| 100 | $ 1.85 | |||
| 500 | $ 1.64 | |||
| 1000 | $ 1.40 | |||
| Tape & Reel (TR) | 2500 | $ 1.27 | ||
Description
General part information
STLD125N4F6AG Series
This device is an N-channel Power MOSFET developed using the STripFET™ F6 technology with a new trench gate structure. The resulting Power MOSFET exhibits very low RDS(on)in all packages.
