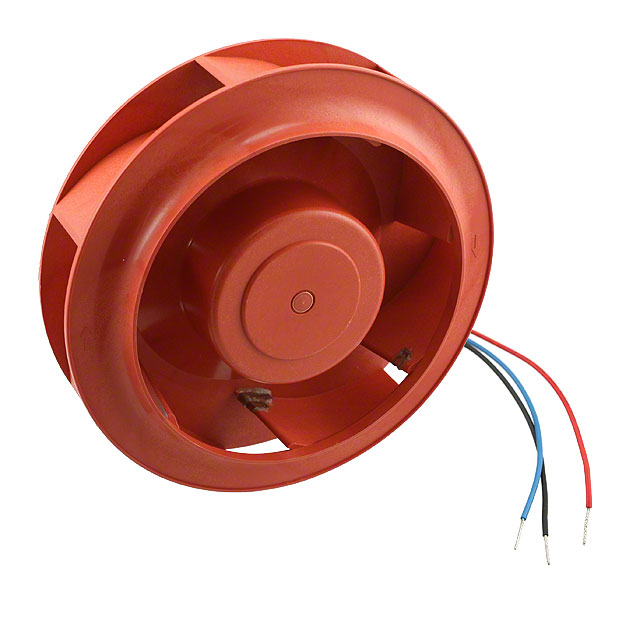

KHB1748VHS-F00
ObsoleteDelta Electronics
FAN IMP MTRZD 175X54MM 48VDC
Deep-Dive with AI
Search across all available documentation for this part.
KHB1748VHS-F00
ObsoleteDelta Electronics
FAN IMP MTRZD 175X54MM 48VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KHB1748VHS-F00 |
|---|---|
| Air Flow | 6.93 m³/min |
| Air Flow | 247.5 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 650 mA |
| Fan Type | Motorized Impellers |
| Features | Speed Sensor (Tach) |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Power (Watts) | 31.2 W |
| RPM | 3500 RPM |
| Size / Dimension [diameter] | 175 mm Dia |
| Static Pressure | 398.8 Pa |
| Static Pressure | 1.601 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 80 VDC |
| Voltage Range [Min] | 32 VDC |
| Weight | 635 g |
| Weight [custom] | 1.4 lbs |
| Width [y] | 54 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KHB1748 Series
Fan Motorized Impellers 48VDC Round - 175mm Dia Ball 247.5 CFM (6.93m³/min) 3 Wire Leads
