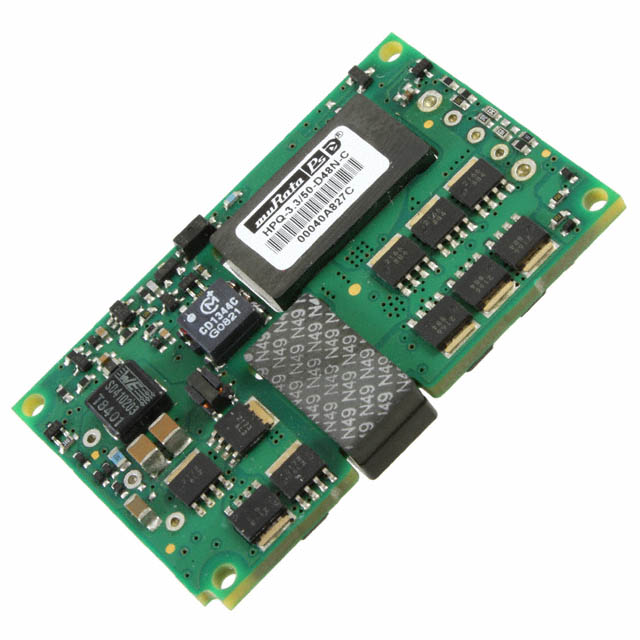

HPQ-12/25-D48PH-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 300W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HPQ-12/25-D48PH-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 300W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HPQ-12/25-D48PH-C | HPQ-12 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active High, Enable, Active Low |
| Current - Output (Max) [Max] | 25 A | 25 A |
| Efficiency | 94.5 % | 94.5 - 95 % |
| Features | OCP, UVLO, OTP, Remote On/Off, SCP, OVP | OCP, UVLO, OTP, Remote On/Off, SCP, OVP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 1/4 Brick, 8-DIP Module | 1/4 Brick, 8-DIP Module |
| Power (Watts) | 300 W | 300 W |
| Size / Dimension | - | 0.49 in |
| Size / Dimension | - | 2.3 " |
| Size / Dimension | - | 1.45 in |
| Size / Dimension [x] | 58.4 mm | 58.4 mm |
| Size / Dimension [x] | 2.3 in | 2.3 in |
| Size / Dimension [y] | 1.45 in | 1.45 in |
| Size / Dimension [y] | 36.8 mm | 36.8 mm |
| Size / Dimension [z] | 11.2 mm | 11.2 - 12.7 mm |
| Size / Dimension [z] | 0.44 " | 0.44 - 0.5 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 75 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 12 V | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
HPQ-12 Series
DC DC CONVERTER 12V 300W
| Part | Voltage - Input (Min) [Min] | Power (Watts) | Control Features | Type | Efficiency | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Output 1 | Features | Package / Case | Applications | Number of Outputs | Mounting Type | Voltage - Isolation | Current - Output (Max) [Max] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. HPQ-12/25-D48PB-C | 36 V | 300 W | Active High, Enable | Isolated Module | 94.5 % | 75 V | 85 °C | -40 °C | 36.8 mm | 2.3 in | 1.45 in | 12.7 mm | 0.5 in | 58.4 mm | 12 V | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 1/4 Brick, 8-DIP Module | ITE (Commercial) | 1 | Through Hole | 2250 VDC | 25 A | |||
Murata Power Solutions Inc. HPQ-12/25-D48PH-C | 36 V | 300 W | Active High, Enable | Isolated Module | 94.5 % | 75 V | 85 °C | -40 °C | 36.8 mm | 2.3 in | 1.45 in | 11.2 mm | 0.44 " | 58.4 mm | 12 V | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 1/4 Brick, 8-DIP Module | ITE (Commercial) | 1 | Through Hole | 2250 VDC | 25 A | |||
Murata Power Solutions Inc. HPQ-12/25-D48NX-C | 36 V | 300 W | Active Low, Enable | Isolated Module | 94.5 % | 75 V | 85 °C | -40 °C | 36.8 mm | 2.3 in | 1.45 in | 11.2 mm | 0.44 " | 58.4 mm | 12 V | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 1/4 Brick, 8-DIP Module | ITE (Commercial) | 1 | Through Hole | 2250 VDC | 25 A | |||
Murata Power Solutions Inc. HPQ-12/25-D48NBL1-C | 36 V | 300 W | Active Low, Enable | Isolated Module | 95 % | 75 V | 85 °C | -40 °C | 36.8 mm | 12.5 mm | 58.4 mm | 12 V | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 8-DIP Module | ITE (Commercial) | 1 | Through Hole | 2250 VDC | 25 A | 0.49 in | 2.3 " | 1.45 in | |||
Murata Power Solutions Inc. HPQ-12/25-D48P-C | 36 V | 300 W | Active High, Enable | Isolated Module | 94.5 % | 75 V | 85 °C | -40 °C | 36.8 mm | 2.3 in | 1.45 in | 11.2 mm | 0.44 " | 58.4 mm | 12 V | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 1/4 Brick, 8-DIP Module | ITE (Commercial) | 1 | Through Hole | 2250 VDC | 25 A |
Description
General part information
HPQ-12 Series
Isolated Module DC DC Converter 1 Output 12V 25A 36V - 75V Input
