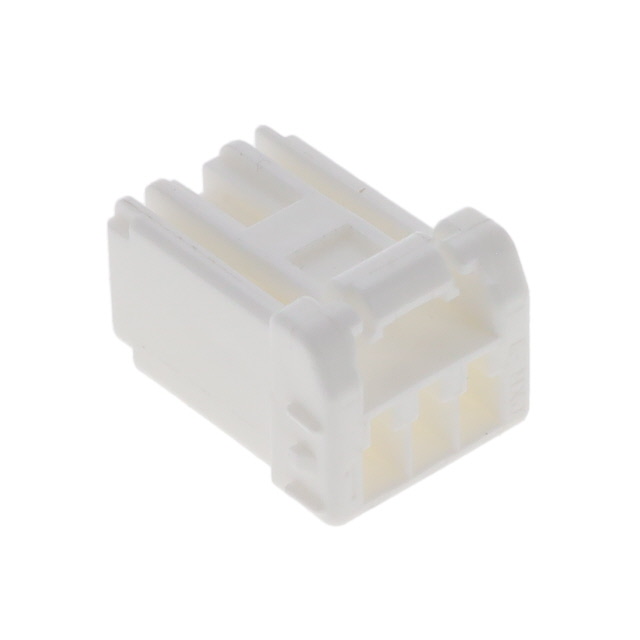

Specification	5005920300

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch	0.098 in

500592 Series

2.50mm Pitch CP-2.5 Mini Wire-to-Wire Receptacle Housing, Positive Lock, Single Row, 7 Circuits

Part	Note	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Insulation Material	Contact Termination	Number of Positions	Mounting Type	Fastening Type	Color	Contact Type	Number of Rows	Pitch
Molex 5005920800	Contacts Not Included	-40 °C	85 °C	Receptacle	Polybutylene Terephthalate (PBT)	Crimp	8	Free Hanging (In-Line)	Latch Lock	Natural	Female Socket	1	0.098 in
Molex 5005920400	Contacts Not Included	-40 °C	85 °C	Receptacle	Polybutylene Terephthalate (PBT)	Crimp	4	Free Hanging (In-Line)	Latch Lock	Natural	Female Socket	1	0.098 in
Molex 5005920500	Contacts Not Included	-40 °C	85 °C	Receptacle	Polybutylene Terephthalate (PBT)	Crimp	5	Free Hanging (In-Line)	Latch Lock	Natural	Female Socket	1	0.098 in
Molex 5005920700	Contacts Not Included	-40 °C	85 °C	Receptacle	Polybutylene Terephthalate (PBT)	Crimp	7	Free Hanging (In-Line)	Latch Lock	Natural	Female Socket	1	0.098 in
Molex 5005920203		-40 °C	85 °C	Receptacle		Crimp	2		Latch Lock	Yellow	Female Socket	1	0.098 in
Molex 5005920600	Contacts Not Included	-40 °C	85 °C	Receptacle	Polybutylene Terephthalate (PBT)	Crimp	6	Free Hanging (In-Line)	Latch Lock	Natural	Female Socket	1	0.098 in
Molex 5005920300	Contacts Not Included	-40 °C	85 °C	Receptacle	Polybutylene Terephthalate (PBT)	Crimp	3	Free Hanging (In-Line)	Latch Lock	Natural	Female Socket	1	0.098 in
Molex 5005920200	Contacts Not Included	-40 °C	85 °C	Receptacle	Polybutylene Terephthalate (PBT)	Crimp	2	Free Hanging (In-Line)	Latch Lock	Natural	Female Socket	1	0.098 in
