CPDT6-5V4-HF

Active

Comchip Technology

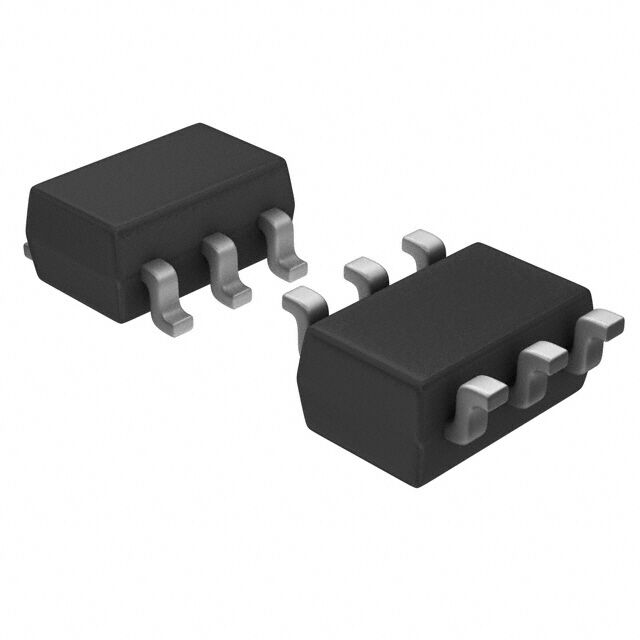

TVS DIODE 5VWM 15VC SOT23-6

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 5VWM 15VC SOT23-6

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPDT6-5V4-HF	CPDT6-5 Series

Applications	General Purpose	General Purpose
Bidirectional Channels [custom]	4	4
Current - Peak Pulse (10/1000µs)	5 A	5 - 8 A
Mounting Type	Surface Mount	Surface Mount
Package / Case	SOT-23-6	SOT-23-6
Power - Peak Pulse	75 W	75 - 80 W
Power Line Protection	False	False
Supplier Device Package	SOT-23-6	SOT-23-6
Type	Zener	Zener
Unidirectional Channels	-	4
Voltage - Breakdown (Min) [Min]	5.1 V	5.1 - 6.1 V
Voltage - Clamping (Max) @ Ipp [Max]	15 V	10 - 15 V
Voltage - Reverse Standoff (Typ)	5 V	5 V

TVS DIODE 5VWM 10VC SOT23-6

Part	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Power - Peak Pulse	Type	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Power Line Protection	Supplier Device Package	Package / Case	Mounting Type	Unidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Bidirectional Channels [custom]
Comchip Technology CPDT6-5V4U-HF	General Purpose	10 V	80 W	Zener	8 A	5 V		SOT-23-6	SOT-23-6	Surface Mount	4	6.1 V
Comchip Technology CPDT6-5V4-HF	General Purpose	15 V	75 W	Zener	5 A	5 V		SOT-23-6	SOT-23-6	Surface Mount		5.1 V	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-6
