2-1103012-3
ActiveTE Connectivity AMP Connectors

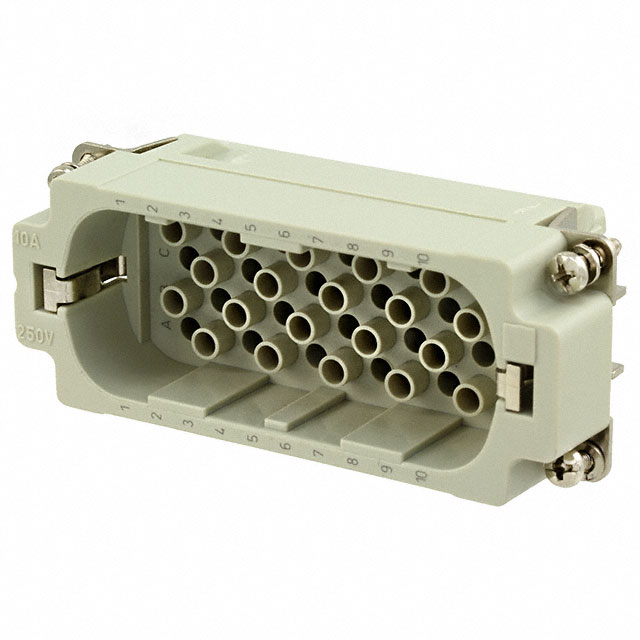

INSERT MALE 40POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
2-1103012-3
ActiveTE Connectivity AMP Connectors
INSERT MALE 40POS+1GND CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1103012-3 |
|---|---|
| Color | Beige |
| Connector Type | Insert without Contacts |
| Contact Type | HD.M |
| Current Rating (Amps) | 10 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 40+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 6 |
| Termination Style | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1103012 Series
INSERT MALE 40POS+1GND CRIMP
| Part | Gender | Current Rating (Amps) | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Color | Size | Termination Style | Contact Type | Connector Type | Housing Material | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1103012-3 | Male | 10 A | 250 VDC | 125 °C | -40 °C | 40+Ground | Beige | 6 | Crimp | HD.M | Insert without Contacts | Polycarbonate (PC) | UL94 V-0 |
Description
General part information
1103012 Series
Male Insert without Contacts Beige 40+Ground Position Crimp
