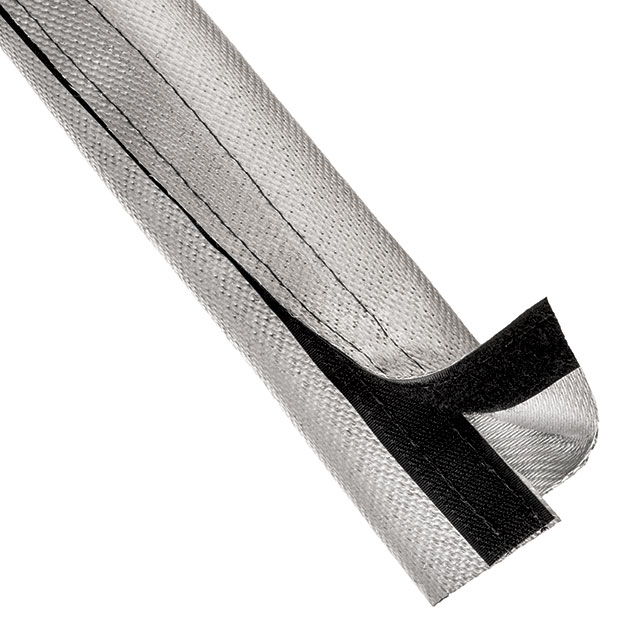

WWH1.00SV50

Active

Techflex

SELF WRAP 1" X 50' SILVER

Search across all available documentation for this part.

Active

Techflex

SELF WRAP 1" X 50' SILVER

Technical Specifications

Parameters and characteristics for this part

Specification	WWH1.00SV50

Abrasion Protection	Abrasion Resistant
Color	Silver
Diameter - Inside, Non-Expanded [diameter]	1 in
Diameter - Inside, Non-Expanded [diameter]	25.4 mm
Environment Protection	UV Resistant
Features	Hook and Loop Closure Strip, Clean Cut, Chemical Resistant
Heat Protection	Heat Resistant
Length	15.24 m
Length [x]	50 ft
Liquid Protection	Gasoline Resistant
Material	Silicone
Material Flammability Rating	Non Flammable
Operating Temperature [Max]	204.4 °C
Operating Temperature [Min]	-40 °C
Type	Self Wrap
Type Attributes	Split Flexible Tube
Wall Thickness	0.051 in
Wall Thickness	1.3 mm

SELF WRAP 1" X 50' SILVER

Part	Operating Temperature [Max]	Operating Temperature [Min]	Color	Heat Protection	Type	Wall Thickness	Wall Thickness	Type Attributes	Material Flammability Rating	Material	Abrasion Protection	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Features	Length	Length [x]	Environment Protection	Liquid Protection
Techflex WWH1.00SV50	204.4 °C	-40 °C	Silver	Heat Resistant	Self Wrap	0.051 in	1.3 mm	Split Flexible Tube	Non Flammable	Silicone	Abrasion Resistant	1 in	25.4 mm	Chemical Resistant, Clean Cut, Hook and Loop Closure Strip	15.24 m	50 ft	UV Resistant	Gasoline Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 292.22

General part information

Self Wrap X 50.00' (15.24m) Silver
