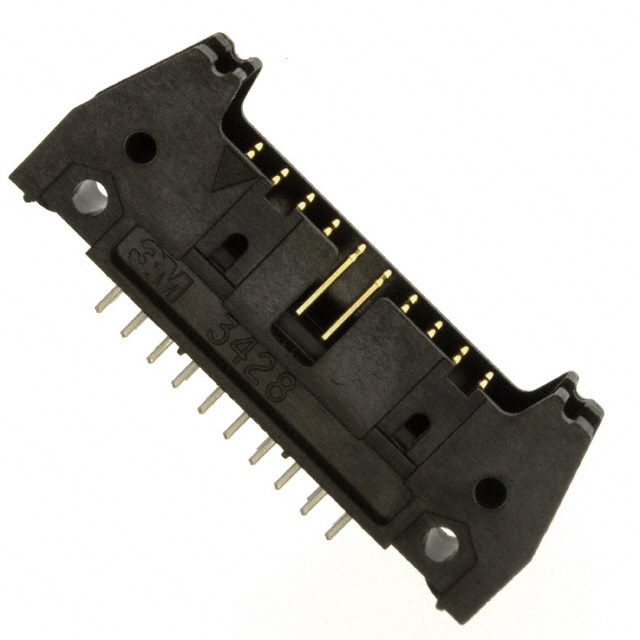

D3428-6002-AR

Active

3M (TC)

80001204785 D3428-6002-AR =20/HDR/STR/HT/.112/10AVG/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

D3428-6002-AR

Active

3M (TC)

80001204785 D3428-6002-AR =20/HDR/STR/HT/.112/10AVG/ROHS

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D3428-6002-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	17.27 mm
Insulation Height	0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.652 in
Overall Contact Length	16.56 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

D3428 Series

Part	Number of Positions Loaded	Contact Shape	Contact Material	Termination	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Insulation Height	Insulation Height	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating [x]	Insulation Color	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Type	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Connector Type	Shrouding	Current Rating (Amps)	Style	Mounting Type	Overall Contact Length	Overall Contact Length
3M (TC) D3428-5302-AR	All	Square	Brass	Solder	UL94 V-0	1 çm	39.4 çin	20	0.34 in	8.64 mm	Tin	105 ░C	-55 °C	10 çin	0.25 çm	6.1 mm	0.24 in	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Male Pin	2	2.54 mm	0.1 in	Latch Lock/Eject Hooks Long	2.84 mm	0.112 in	Gold	Header	Shrouded - 4 Wall	1.75 A	Board to Cable/Wire	Through Hole Right Angle
3M (TC) D3428-6002-AR	All	Square	Brass	Solder	UL94 V-0	1 çm	39.4 çin	20	0.68 in	17.27 mm	Tin	105 ░C	-55 °C	10 çin	0.25 çm	6.1 mm	0.24 in	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Male Pin	2	2.54 mm	0.1 in	Push-Pull	2.84 mm	0.112 in	Gold	Header	Shrouded - 4 Wall	1.75 A	Board to Cable/Wire	Through Hole	0.652 in	16.56 mm
3M (TC) D3428-5202-AR	All	Square	Brass	Solder	UL94 V-0	1 çm	39.4 çin	20	0.34 in	8.64 mm	Tin	105 ░C	-55 °C	10 çin	0.25 çm	6.1 mm	0.24 in	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Male Pin	2	2.54 mm	0.1 in	Latch Lock/Eject Hooks Short	2.84 mm	0.112 in	Gold	Header	Shrouded - 4 Wall	1.75 A	Board to Cable/Wire	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	900	$ 1.70
Newark	Each	500	$ 2.01
		1000	$ 1.89

Description

General part information

D3428 Series

Connector Header Through Hole 20 position 0.100" (2.54mm)
