770842-1

Active

TE Connectivity AMP Connectors

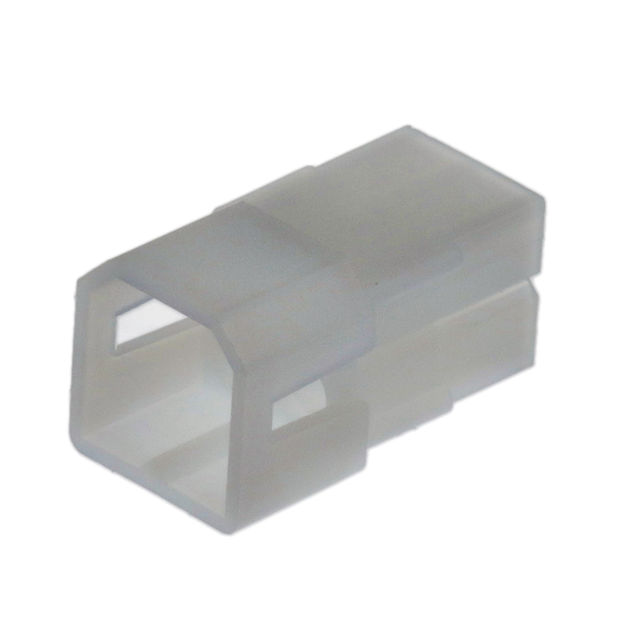

CONN PLUG HSG 4POS 5.03MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 4POS 5.03MM

Technical Specifications

Parameters and characteristics for this part

CONN PLUG HSG 4POS 5.03MM

Part	Contact Type	Connector Type	Color	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Number of Rows	Note	Mounting Type	Fastening Type	Row Spacing	Row Spacing	Number of Positions	Insulation Material
TE Connectivity AMP Connectors 770842-1	Male or Female	Plug	Natural	Crimp	105 ░C	-55 °C	0.198 in	5.03 mm	2	Contacts Not Included	Free Hanging (In-Line)	Detent Lock	0.198 in	5.03 mm	4	Nylon, Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Plug Natural 0.198" (5.03mm)
