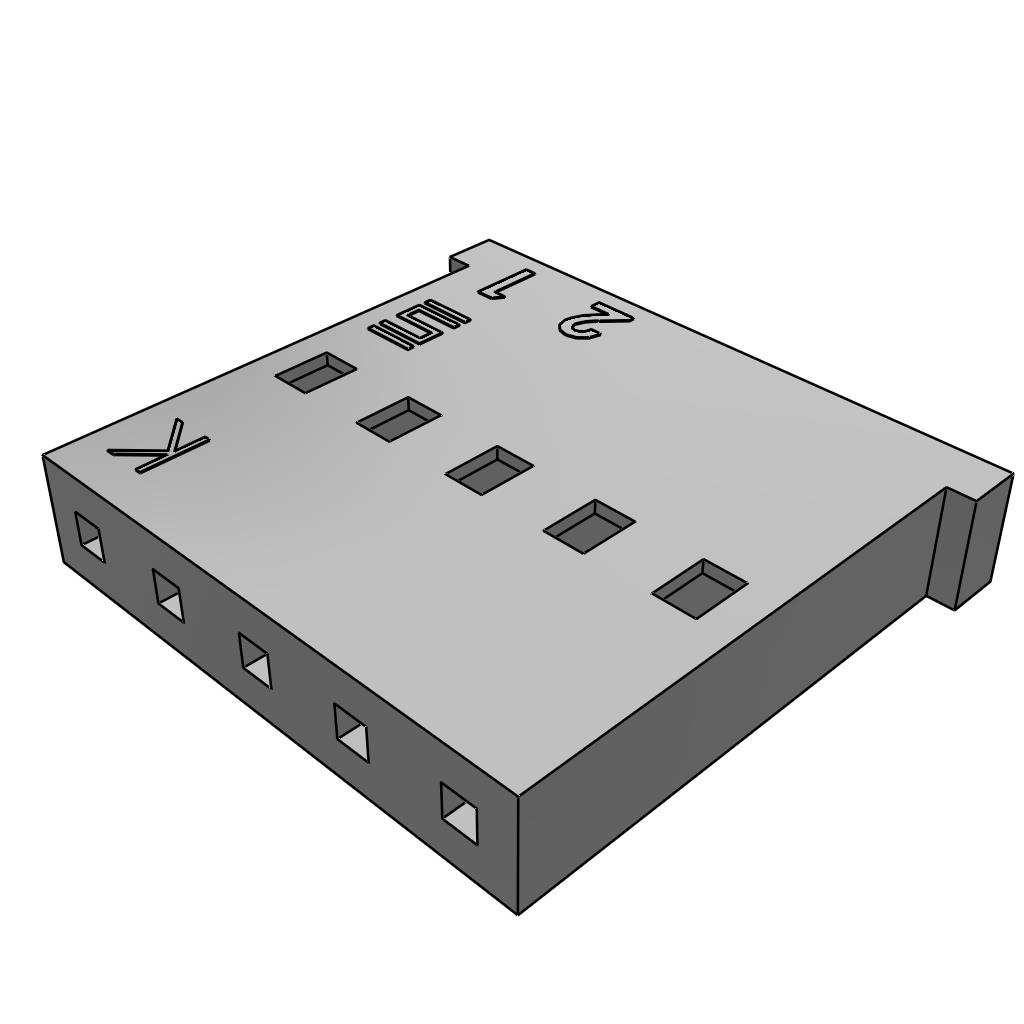

ISSM-05

Active

Samtec Inc.

CONN HSG 5POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HSG 5POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	ISSM-05

Color	White
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

Part	Contact Type	Color	Pitch [x]	Pitch [x]	Number of Positions	Contact Termination	Insulation Material	Number of Rows	Mounting Type	Note
Samtec Inc. ISSM-10	Female Socket	White	2.54 mm	0.1 in	10	Crimp	Polybutylene Terephthalate (PBT)	1	Free Hanging (In-Line)	Contacts Not Included
Samtec Inc. ISSM-05	Female Socket	White	2.54 mm	0.1 in		Crimp	Polybutylene Terephthalate (PBT)	1	Free Hanging (In-Line)	Contacts Not Included
Samtec Inc. ISSM-02	Female Socket	White	2.54 mm	0.1 in	2	Crimp	Polybutylene Terephthalate (PBT)	1	Free Hanging (In-Line)	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Rectangular Connectors - Housings White 0.100" (2.54mm)
