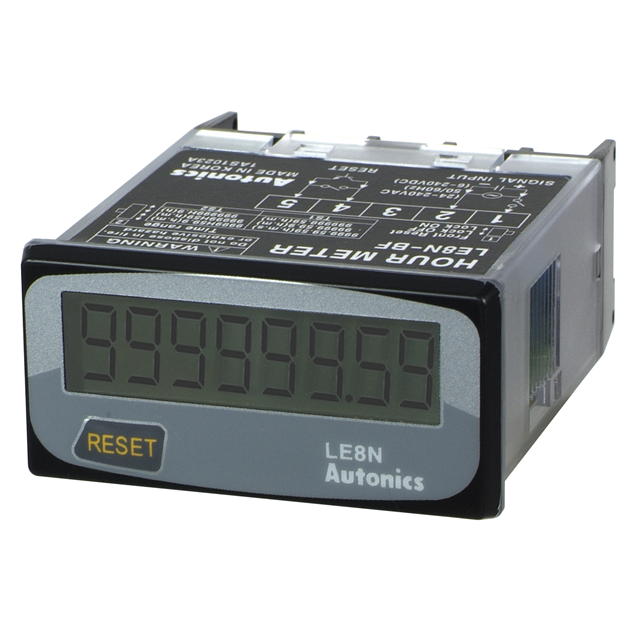

LE8N-BN

Active

AUTONICS

HOUR METER BATTERY NO V-INPUT

Search across all available documentation for this part.

Active

AUTONICS

HOUR METER BATTERY NO V-INPUT

Technical Specifications

Parameters and characteristics for this part

Specification	LE8N-BN

Count Rate	Multiple
Display Characters - Height [z]	8.7 mm
Display Characters - Height [z]	0.343 in
Display Type	LCD - Black Characters
Ingress Protection	IP66
Input Type	No Voltage
Number of Characters Per Row	8
Operating Mode	Up
Panel Cutout Dimensions [x]	45 mm
Panel Cutout Dimensions [y]	22.2 mm
Reset	External, Front Panel
Termination Style	Screw Terminal
Time Format	Multiple
Type	Time Counter (Hour Meter)
Voltage - Supply	None Required (Battery Included)

Part	Operating Mode	Input Type	Ingress Protection	Time Format	Display Type	Voltage - Supply	Display Characters - Height [z]	Display Characters - Height [z]	Termination Style	Type	Reset	Count Rate	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Number of Characters Per Row	Count Rate
AUTONICS LE8N-BN	Up	No Voltage	IP66	Multiple	LCD - Black Characters	None Required (Battery Included)	8.7 mm	0.343 in	Screw Terminal	Time Counter (Hour Meter)	External Front Panel	Multiple	22.2 mm	45 mm	8
AUTONICS LE8N-BF	Up	Voltage	IP66	Multiple	LCD - Black Characters	None Required (Battery Included)	8.7 mm	0.343 in	Screw Terminal	Time Counter (Hour Meter)	External Front Panel		22.2 mm	45 mm	8	20 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 63.00

General part information

Time Counter (Hour Meter) None Required (Battery Included) Panel Mount

Technical documentation and resources
