SFSD-13-28-G-06.00-D-NDX

Active

Samtec Inc.

RECTANGULAR CABLE ASSEMBLIES .050" TIGER EYE(TM) DOUBLE ROW DISCRETE WIRE CABLE ASSEMBLY

SFSD-13-28-G-06.00-D-NDX

Active

Samtec Inc.

RECTANGULAR CABLE ASSEMBLIES .050" TIGER EYE(TM) DOUBLE ROW DISCRETE WIRE CABLE ASSEMBLY

Description Specifications Series Pricing CAD Documents

Description

General part information

SFSD Series

26 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Technical Specifications

Parameters and characteristics for this part

Specification	SFSD-13-28-G-06.00-D-NDX

Cable Termination	Crimp
Color	Black, Individual
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Polarizing Key
Length	0.5 ft
Number of Positions	26
Number of Rows	2
Pitch - Connector	0.05 in
Shielding	Unshielded

SFSD Series

...

Part	Features	Shielding	Connector Type	Cable Termination	Pitch - Connector	Contact Finish Thickness	Length	Number of Rows	Contact Finish	Color	Number of Positions	Contact Finish Thickness (string set options)	Contact Finish Thickness

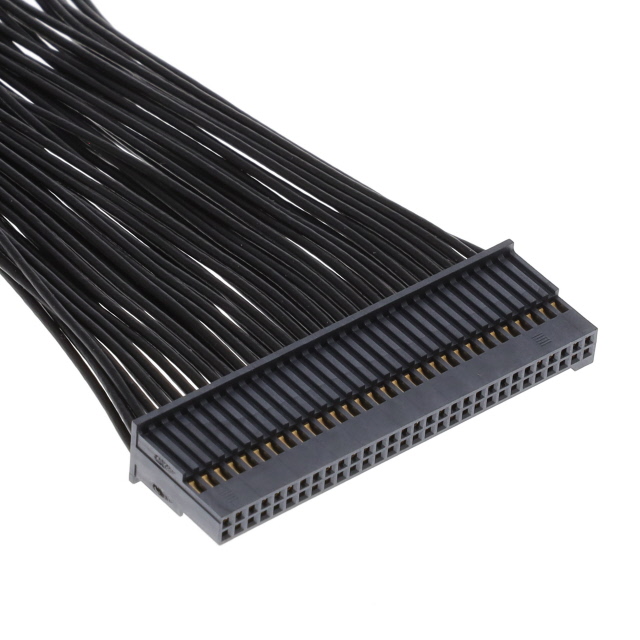

Samtec Inc. SFSD-30-28-G-03.00-S	Polarizing Key	Unshielded	Socket to Individual Wire Leads	Crimp	0.05 in	10 Ąin	3 "	2	Gold	Black Individual	60
Samtec Inc. SFSD-25-30-G-20.00-DR-NDS	Latch Lock Polarizing Key	Unshielded	Socket to Socket	Crimp	0.05 in	10 Ąin	1.67 ft	2	Gold	Black Individual	50
Samtec Inc. SFSD-10-28-G-04.00-DR-NDX	Latch Lock Polarizing Key	Unshielded	Socket to Socket	Crimp	0.05 in	10 Ąin	0.333 ft	2	Gold	Black Individual	20
Samtec Inc. SFSD-15-28C-G-24.00-D-NDX	Polarizing Key	Unshielded	Socket to Socket	Crimp	0.05 in	10 Ąin	24 in	2	Gold	Individual Multiple	30
Samtec Inc. SFSD-05-30-G-36.00-SR	Latch Lock Polarizing Key	Unshielded	Socket to Individual Wire Leads	Crimp	0.05 in	10 Ąin	3 ft	2	Gold	Black Individual	10
Samtec Inc. SFSD-40-30-F-24.00-DR-NDX	Latch Lock Polarizing Key	Unshielded	Socket to Socket	Crimp	0.05 in	0	24 in	2	Gold	Black Individual	80	Flash	Flash
Samtec Inc. SFSD-13-28-G-06.00-D-NDX	Polarizing Key	Unshielded	Socket to Socket	Crimp	0.05 in	10 Ąin	0.5 ft	2	Gold	Black Individual	26
Samtec Inc. SFSD-20-28-H-09.84-DR-NDX		Unshielded	Socket to Socket	Crimp	0.05 in	30 µin		2	Gold	Black Individual	40
Samtec Inc. SFSD-20-28-G-12.00-DR-NUS	Latch Lock Polarizing Key	Unshielded	Socket to Socket	Crimp	0.05 in	10 Ąin	12 in	2	Gold	Black Individual	40
Samtec Inc. SFSD-15-30-H-10.00-S	Polarizing Key	Unshielded	Socket to Individual Wire Leads	Crimp	0.05 in	30 µin	0.833 ft	2	Gold	Black Individual	30
