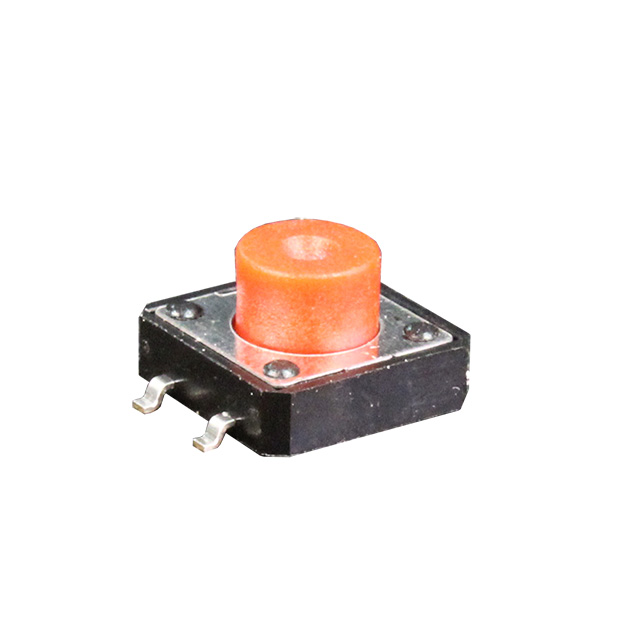

Specification	CS11037.5F180R

Actuator Height off PCB (Vertical)	7.5 mm
Actuator Material	Polyamide (PA6T), Nylon 6T
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating (Current)	0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Force	180 gf
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Outline Length	12 mm
Outline Width	12 mm
Switch Function	Off-Mom
Switch Travel	0.3 mm
Termination Style	Gull Wing

CS11037 Series

Part	Switch Travel	Actuator Material	Circuit	Outline Width	Outline Length	Termination Style	Actuator Orientation	Switch Function	Contact Rating (Current)	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Illumination	Actuator Height off PCB (Vertical)	Operating Force	Actuator Type
CIT Relay and Switch CS11037.5F180R	0.3 mm	Nylon 6T Polyamide (PA6T)	SPST-NO	12 mm	12 mm	Gull Wing	Top Actuated	Off-Mom	0.05 A	Surface Mount	-40 °C	85 °C	Non-Illuminated	7.5 mm	180 gf	Standard
CIT Relay and Switch CS11037.5F260R	0.3 mm	Nylon 6T Polyamide (PA6T)	SPST-NO	12 mm	12 mm	Gull Wing	Top Actuated	Off-Mom	0.05 A	Surface Mount	-40 °C	85 °C	Non-Illuminated	7.5 mm	260 gf	Standard
