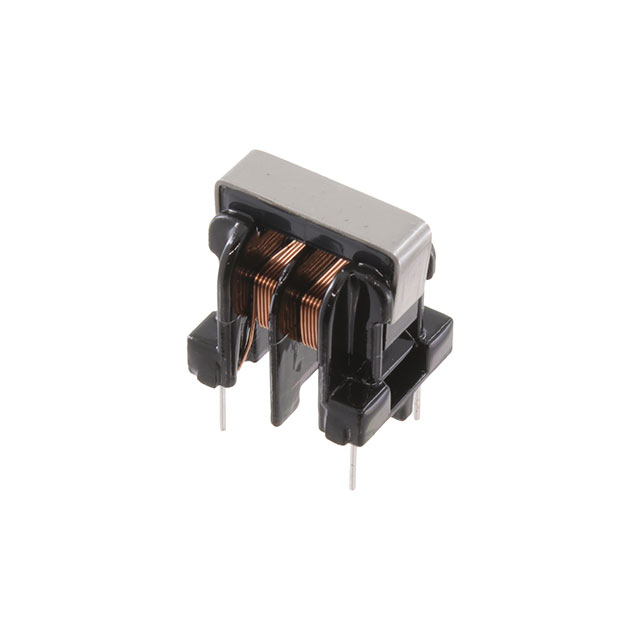

SU10VD-10020 - SU10VD-10020

SU10VD-10020

Active
KEMET

COMMON MODE FILTER, 20UH, 1A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENManufacturer Catalogue EN+3
SU10VD-10020 - SU10VD-10020

SU10VD-10020

Active
KEMET

COMMON MODE FILTER, 20UH, 1A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet ENManufacturer Catalogue EN+3

Technical Specifications

Parameters and characteristics for this part

SpecificationSU10VD-10020
Current Rating (Max) [Max]1 A
DC Resistance (DCR) (Max) [Max]120 mOhm
Filter TypePower Line
Height (Max) [Max]0.787 in
Height (Max) [Max]20 mm
Inductance @ Frequency20 µH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]120 °C
Operating Temperature [Min]-25 °C
Package / Case4 Lead
Package / CaseVertical
Size / Dimension [x]0.709 in
Size / Dimension [x]18 mm
Size / Dimension [y]0.63 in
Size / Dimension [y]16 mm
Voltage Rating - AC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 1.36
10$ 1.15
25$ 1.06
40$ 0.95
100$ 0.80
NewarkEach 1$ 1.80
10$ 1.23
25$ 1.16
50$ 1.11
100$ 1.05
500$ 1.01
1000$ 0.83

Description

General part information

SU10VD Series

20 µH @ 1 kHz 2 Line Common Mode Choke Through Hole 1A DCR 120mOhm
