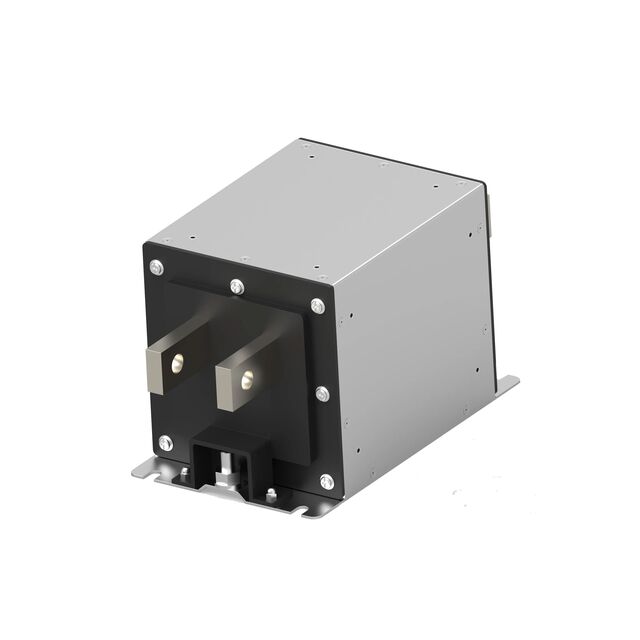

1-2443555-1
ActiveTE Connectivity Raychem Cable Protection
LINE FLTR 1500VDC 450A CHASS MNT
Deep-Dive with AI
Search across all available documentation for this part.
1-2443555-1
ActiveTE Connectivity Raychem Cable Protection
LINE FLTR 1500VDC 450A CHASS MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2443555-1 |
|---|---|
| Applications | Converter |
| Configuration | Two Stage |
| Current | 450 A |
| Filter Type | DC |
| Frequency - Operating | DC |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Terminal Post |
| Voltage - Rated DC | 1500 V |
| Voltage - Rated DC | 1.5 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 796.77 | |
| 10 | $ 761.70 | |||
Description
General part information
Corcom EVX Series
DC EMC/EMI Line Filter 450 A 1500V (1.5kV) DC Two Stage Terminal Post
