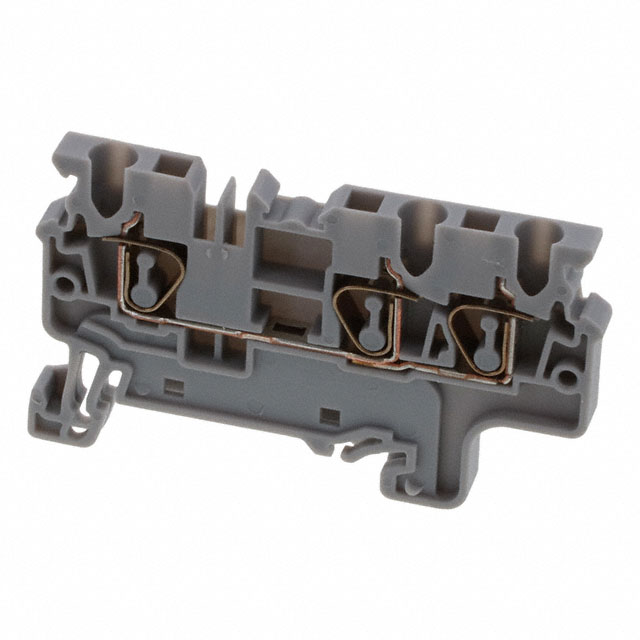

CX2.5/3

Active

TE Connectivity Raychem Cable Protection

CONN TERM BLK FEED THRU 12-24AWG

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN TERM BLK FEED THRU 12-24AWG

Technical Specifications

Parameters and characteristics for this part

Part	Number of Levels	Current - UL	Number of Positions	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Voltage - UL	Color	Type	Terminal - Width	Termination Style	Current - IEC	Material - Insulation	Stripping Length	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - IEC
TE Connectivity Raychem Cable Protection CX2.5/4	1	20 A	4	0.2 mm˛	2.5 mm˛	600 V	Gray	Feed Through	5 mm	Push In Spring	24 A	Polyamide (PA66) Nylon 6/6	10 mm	24 AWG	12 AWG	1 kV
Altech Corporation CX2.5/4	1	20 A	4	0.2 mm˛	2.5 mm˛	600 V	Gray	Feed Through	5 mm	Push In Spring	24 A	Polyamide (PA66) Nylon 6/6	10 mm	24 AWG	12 AWG	1 kV
TE Connectivity Raychem Cable Protection CX2.5/3	1	20 A		0.2 mm˛	2.5 mm˛	600 V	Gray	Feed Through	5 mm	Push In Spring	24 A	Polyamide (PA66) Nylon 6/6	10 mm	24 AWG	12 AWG	1 kV
Altech Corporation CX2.5/3	1	20 A		0.2 mm˛	2.5 mm˛	600 V	Gray	Feed Through	5 mm	Push In Spring	24 A	Polyamide (PA66) Nylon 6/6	10 mm	24 AWG	12 AWG	1 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 3 Position Feed Through Gray 12-24 AWG
