794911-1

Active

TE Connectivity AMP Connectors

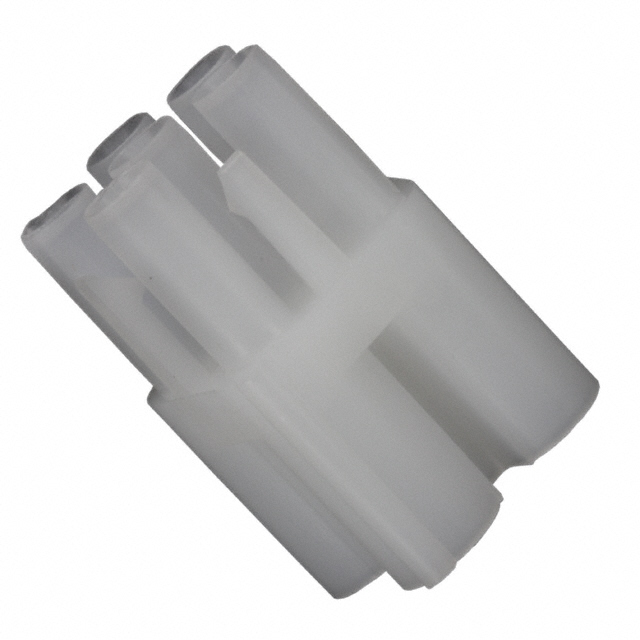

CONN PLG HSG FMALE 6POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLG HSG FMALE 6POS INLINE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	794911-1	794911 Series

Connector Type	Plug Housing	Plug Housing
Contact Shape	Circular	Circular
Contact Type	Crimp	Crimp
Fastening Type	Latch Lock	Latch Lock
Housing Color	Natural	Natural, Red
Material Flammability Rating	UL94 V-2, UL94 V-0	UL94 V-2, UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	6	6
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Shielding	Unshielded	Unshielded
Type	For Female Sockets	For Female Sockets

CONN PLG HSG FMALE 6POS INLINE

Part	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Shielding	Note	Housing Color	Orientation	Connector Type	Material Flammability Rating	Mounting Type	Type	Contact Shape	Fastening Type
TE Connectivity AMP Connectors 794911-1	6	105 ░C	-55 °C	Crimp	Unshielded	Contacts Not Included	Natural	Keyed	Plug Housing	UL94 V-0, UL94 V-2	Free Hanging (In-Line)	For Female Sockets	Circular	Latch Lock
TE Connectivity AMP Connectors 794911-2	6	105 ░C	-55 °C	Crimp	Unshielded	Contacts Not Included	Red	Keyed	Plug Housing	UL94 V-0, UL94 V-2	Free Hanging (In-Line)	For Female Sockets	Circular	Latch Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (Power) Position Circular Connector Plug Housing Free Hanging (In-Line)
