837-062 Series

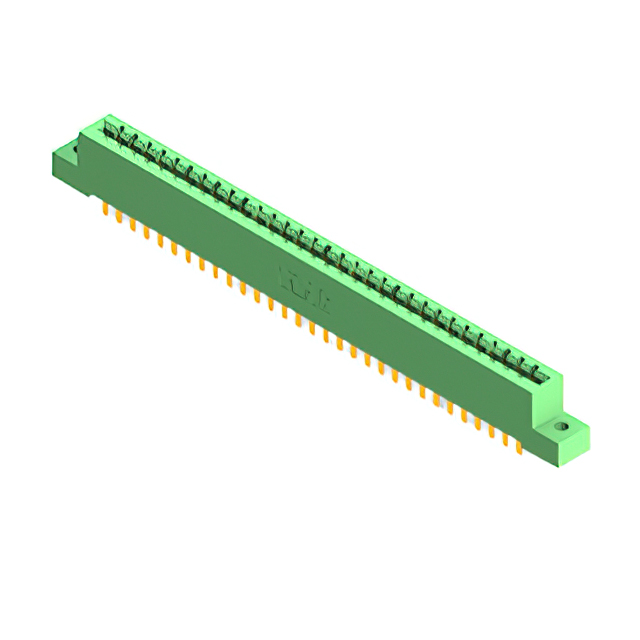

62 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	837-062-544-202

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Unthreaded, Top Opening
Flange Feature Diameter	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Through Hole
Number of Positions	62, 31
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2 rows

837-062 Series

...

Part	Contact Finish	Number of Rows	Color	Card Thickness (Min)	Card Thickness (Max)	Gender	Pitch	Number of Positions	Read Out	Card Type	Contact Finish Thickness	Termination	Mounting Type	Flange Feature Diameter	Flange Feature	Contact Material	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Material - Insulation	Termination Rows	Features
EDAC Inc. 837-062-541-804	Gold	2	Green	0.054 in	0.07 in	Female	0.156 in	31 62	Dual	Dual Edge Non Specified	10 Ąin	Wire Wrap	Through Hole	0.156 in	Top Mount Opening Unthreaded	Copper Alloy	Cantilever	125 °C	-40 °C	DAP Diallyl Phthalate	2 rows
EDAC Inc. 837-062-544-202	Gold	2	Green	0.054 in	0.07 in	Female	0.156 in	31 62	Dual	Dual Edge Non Specified	10 Ąin	Wire Wrap	Through Hole	0.128 in	Flush Mount Top Opening Unthreaded	Copper Alloy	Cantilever	125 °C	-40 °C	DAP Diallyl Phthalate	2 rows
EDAC Inc. 837-062-556-203	Gold	2	Green	0.054 in	0.07 in	Female	0.156 in	31 62	Dual	Dual Edge Non Specified	10 Ąin	Solder	Board Edge Straddle Mount	0.116 in	Floating Bobbin Flush Mount	Copper Alloy	Cantilever	125 °C	-40 °C	DAP Diallyl Phthalate	2 rows	Card Extender
EDAC Inc. 837-062-559-804	Gold	2	Green	0.054 in	0.07 in	Female	0.156 in	31 62	Dual	Dual Edge Non Specified	10 Ąin	Solder	Right Angle Through Hole	0.156 in	Top Mount Opening Unthreaded	Copper Alloy	Cantilever	125 °C	-40 °C	DAP Diallyl Phthalate	2 rows
EDAC Inc. 837-062-558-808	Gold	2	Green	0.054 in	0.07 in	Female	0.156 in	31 62	Dual	Dual Edge Non Specified	10 Ąin	Solder	Right Angle Through Hole		4-40 Threaded Insert Top Mount Opening	Copper Alloy	Cantilever	125 °C	-40 °C	DAP Diallyl Phthalate	2 rows
EDAC Inc. 837-062-560-204	Gold	2	Green	0.054 in	0.07 in	Female	0.156 in	31 62	Dual	Dual Edge Non Specified	10 Ąin	Solder	Board Edge Straddle Mount	0.156 in	Flush Mount Top Opening Unthreaded	Copper Alloy	Cantilever	125 °C	-40 °C	DAP Diallyl Phthalate	2 rows	Card Extender
EDAC Inc. 837-062-556-204	Gold	2	Green	0.054 in	0.07 in	Female	0.156 in	31 62	Dual	Dual Edge Non Specified	10 Ąin	Solder	Board Edge Straddle Mount	0.156 in	Flush Mount Top Opening Unthreaded	Copper Alloy	Cantilever	125 °C	-40 °C	DAP Diallyl Phthalate	2 rows	Card Extender
EDAC Inc. 837-062-523-203	Gold	2	Green	0.054 in	0.07 in	Female	0.156 in	31 62	Dual	Dual Edge Non Specified	10 Ąin	Solder	Through Hole	0.116 in	Floating Bobbin Flush Mount	Copper Alloy	Cantilever	125 °C	-40 °C	DAP Diallyl Phthalate	2 rows
EDAC Inc. 837-062-500-803	Gold	2	Green	0.054 in	0.07 in	Female	0.156 in	31 62	Dual	Dual Edge Non Specified	10 Ąin	Solder Eyelet(s)	Through Hole	0.116 in	Floating Bobbin Top Mount Opening	Copper Alloy	Cantilever	125 °C	-40 °C	DAP Diallyl Phthalate	2 rows
EDAC Inc. 837-062-541-203	Gold	2	Green	0.054 in	0.07 in	Female	0.156 in	31 62	Dual	Dual Edge Non Specified	10 Ąin	Wire Wrap	Through Hole	0.116 in	Floating Bobbin Flush Mount	Copper Alloy	Cantilever	125 °C	-40 °C	DAP Diallyl Phthalate	2 rows
