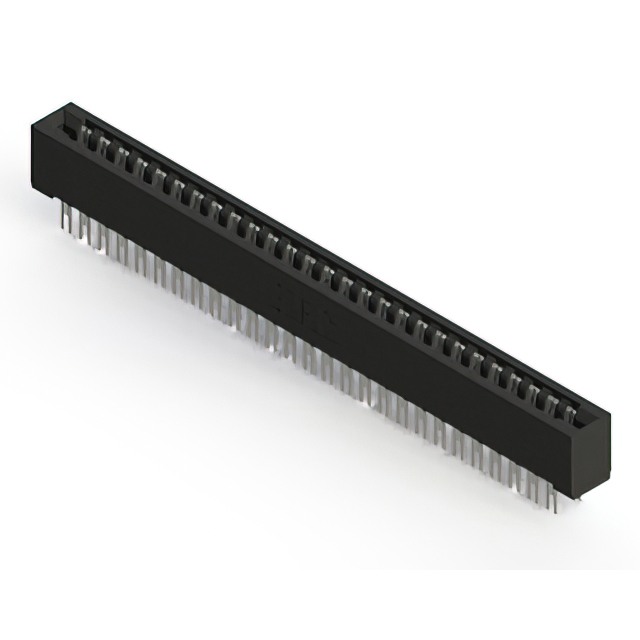

357-054-400-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 54POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-054-400-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 54POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-054-400-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 54 |
| Number of Positions/Bay/Row [custom] | 27 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
357-054 Series
...
| Part | Pitch [x] | Pitch [x] | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Read Out | Color | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Termination | Number of Positions/Bay/Row [custom] | Number of Positions | Contact Finish | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | -40 °C | 105 ░C | Female | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | Black | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Non Specified - Dual Edge | Solder Eyelet(s) | 27 | 54 | Gold | Copper Alloy | 10 Áin | 0.25 Ám | 2 | Through Hole | |
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | -40 °C | 105 ░C | Female | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | Black | Non Specified - Dual Edge | Solder Eyelet(s) | 27 | 54 | Tin | Copper Alloy | 2 | Through Hole | ||||||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | -40 °C | 105 ░C | Female | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | Black | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Solder | 27 | 54 | Gold | Copper Alloy | 10 Áin | 0.25 Ám | 2 | Through Hole | Card Guides | ||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | -40 °C | 105 ░C | Female | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | Black | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Non Specified - Dual Edge | Solder | 27 | 54 | Tin | Copper Alloy | 2 | Through Hole | |||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | -40 °C | 105 ░C | Female | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | Black | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Solder | 27 | 54 | Tin | Copper Alloy | 2 | Through Hole | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | -40 °C | 105 ░C | Female | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | Black | Non Specified - Dual Edge | Solder | 27 | 54 | Tin | Copper Alloy | 2 | Through Hole | ||||||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | -40 °C | 105 ░C | Female | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | Black | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Wire Wrap | 27 | 54 | Gold | Copper Alloy | 10 Áin | 0.25 Ám | 2 | Through Hole | Card Guides | ||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | -40 °C | 105 ░C | Female | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | Black | Non Specified - Dual Edge | Solder | 27 | 54 | Tin | Copper Alloy | 2 | Through Hole | ||||||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | -40 °C | 105 ░C | Female | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | Black | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Dual Edge | Solder | 27 | 54 | Gold | Copper Alloy | 10 Áin | 0.25 Ám | 2 | Through Hole Right Angle | |
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | -40 °C | 105 ░C | Female | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | Black | Non Specified - Dual Edge | Solder Wire Wrap | 27 | 54 | Gold | Copper Alloy | 10 Áin | 0.25 Ám | 2 | Through Hole Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 15.02 | |
Description
General part information
357-054 Series
54 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
