3221-10-0300-00-TR

Active

CnC Tech, LLC

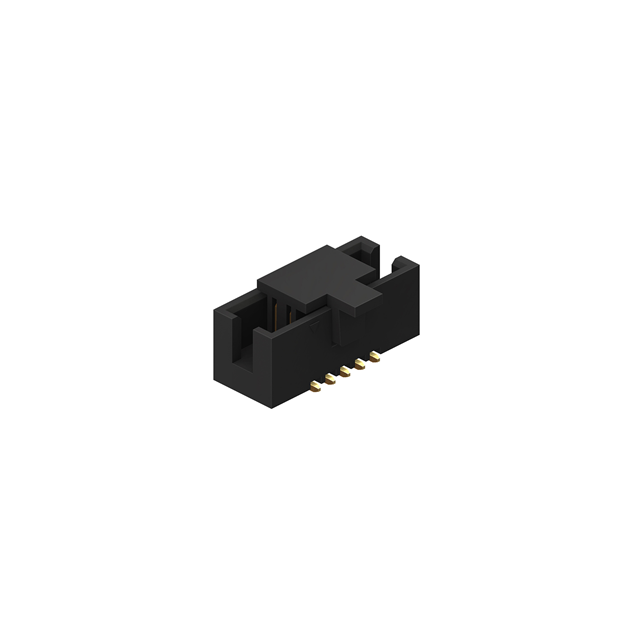

CONN HEADER SMD 10POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSoldering Guide 3X10,3X20,3221 Series Datasheet

3221-10-0300-00-TR

Active

CnC Tech, LLC

CONN HEADER SMD 10POS 1.27MM

Deep-Dive with AI

DocumentsSoldering Guide 3X10,3X20,3221 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3221-10-0300-00-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height	5.4 mm
Insulation Height [z]	0.213 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

3221-10 Series

Part	Insulation Height	Insulation Height [z]	Contact Type	Number of Rows	Features	Mounting Type	Contact Finish - Post	Termination	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Finish Thickness - Post	Connector Type	Insulation Color	Contact Shape	Insulation Material	Number of Positions	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Shrouding	Style	Contact Material	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Finish - Mating	Insulation Height [z]
CnC Tech, LLC 3221-10-0100-00	5.4 mm	0.213 in	Male Pin	2	Keying Slot	Through Hole	Gold	Solder	0.05 in	1.27 mm	50 VAC	Flash	Header	Black	Square	Nylon 9T Polyamide (PA9T)	10	All	0.05 in	1.27 mm	Shrouded - 4 Wall	Board to Cable/Wire	Brass	Flash	0.083 in	2.11 mm	UL94 V-0	-40 °C	105 ░C	Push-Pull	Gold
CnC Tech, LLC 3221-10-0300-00	5.4 mm	0.213 in	Male Pin	2	Keying Slot	Surface Mount	Gold	Solder	0.05 in	1.27 mm	50 VAC	Flash	Header	Black	Square	Nylon 9T Polyamide (PA9T)	10	All	0.05 in	1.27 mm	Shrouded - 4 Wall	Board to Cable/Wire	Brass	Flash			UL94 V-0	-40 °C	105 ░C	Push-Pull	Gold
CnC Tech, LLC 3221-10-0300-00-TR	5.4 mm	0.213 in	Male Pin	2	Keying Slot Pick and Place	Surface Mount	Gold	Solder	0.05 in	1.27 mm	50 VAC	Flash	Header	Black	Square	Nylon 9T Polyamide (PA9T)	10	All	0.05 in	1.27 mm	Shrouded - 4 Wall	Board to Cable/Wire	Brass	Flash			UL94 V-0	-40 °C	105 ░C	Push-Pull	Gold
CnC Tech, LLC 3221-10-0200-00		0.201 "	Male Pin	2	Keying Slot	Through Hole Right Angle	Gold	Solder	0.05 in	1.27 mm	50 VAC	Flash	Header	Black	Square	Nylon 9T Polyamide (PA9T)	10	All	0.05 in	1.27 mm	Shrouded - 4 Wall	Board to Cable/Wire	Brass	Flash	0.083 in	2.11 mm	UL94 V-0	-40 °C	105 ░C	Push-Pull	Gold	5.1 mm
