R75PR3470AA40K

Active

KEMET

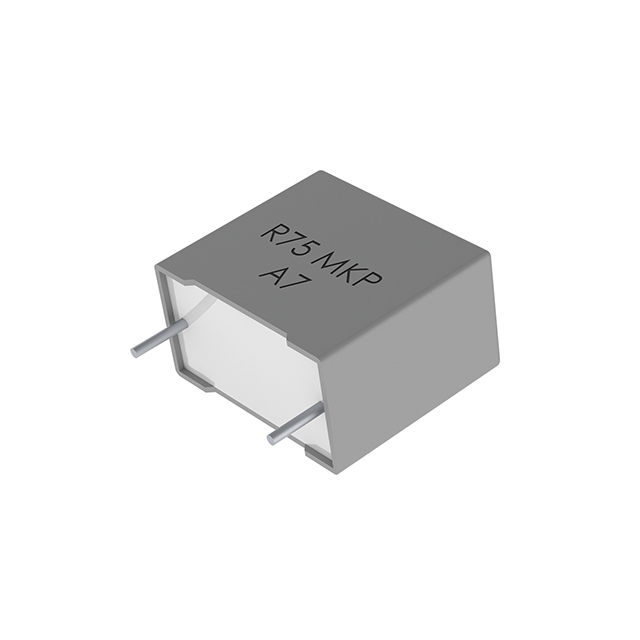

CAP FILM 0.47UF 10% 630VDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsR75PR3470AA40K Spec Datasheet

R75PR3470AA40K

Active

KEMET

CAP FILM 0.47UF 10% 630VDC RAD

Deep-Dive with AI

DocumentsR75PR3470AA40K Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R75PR3470AA40K

Applications	Switching, DV/DT, High Frequency, High Pulse
Capacitance	0.47 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	8 mOhms
Height - Seated (Max) [Max]	0.673 in
Height - Seated (Max) [Max]	17.1 mm
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	1.26 in
Size / Dimension [x]	32 mm
Size / Dimension [y]	0.354 in
Size / Dimension [y]	9 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	250 V

R75PR Series

Part	Termination	ESR (Equivalent Series Resistance)	Voltage Rating - AC	Tolerance	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Package / Case	Applications	Mounting Type	Ratings	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R75PR3470AA40K	PC Pins	8 mOhms	250 V	10 %	27.5 mm	1.083 in	105 ░C	-55 °C	Metallized Polypropylene (PP)	0.673 in	17.1 mm	1.26 in	0.354 in	32 mm	9 mm	0.47 µF	Radial	DV/DT High Frequency High Pulse Switching	Through Hole
KEMET R75PR36804030J	PC Pins		250 V	5 %	27.5 mm	1.083 in	105 ░C	-55 °C	Metallized Polypropylene (PP)			1.26 in	0.433 in	32 mm	11 mm	680 nF	Radial	DV/DT High Frequency High Pulse Switching	Through Hole
KEMET R75PR418050H3J	PC Pins	8.8 mOhms	250 V	5 %	27.5 mm	1.083 in	125 °C	-55 °C	Metallized Polypropylene (PP)			1.26 in	0.709 "	32 mm	18 mm	1.8 µF	Radial	Automotive High Frequency Switching High Pulse DV/DT	Through Hole	AEC-Q200
KEMET R75PR412050H4J	PC Pins	13.3 mOhms	250 V	5 %	27.5 mm	1.083 in	125 °C	-55 °C	Metallized Polypropylene (PP)	1.106 "	28.1 mm	1.26 in	0.551 in	32 mm	14 mm	1.2 µF	Radial	Automotive High Frequency Switching High Pulse DV/DT	Through Hole	AEC-Q200
KEMET R75PR382050H3J	PC Pins	9.7 mOhms	250 V	5 %	27.5 mm	1.083 in	125 °C	-55 °C	Metallized Polypropylene (PP)			1.26 in	0.512 in	32 mm		0.82 µF	Radial	Automotive High Frequency Switching High Pulse DV/DT	Through Hole	AEC-Q200	13 mm	0.87 in	22.1 mm
KEMET R75PR422050H3J	PC Pins	7.2 mOhms	250 V	5 %	27.5 mm	1.083 in	125 °C	-55 °C	Metallized Polypropylene (PP)			1.26 in	0.709 "	32 mm	18 mm	2.2 µF	Radial	Automotive High Frequency Switching High Pulse DV/DT	Through Hole	AEC-Q200
KEMET R75PR41004030K	PC Pins		250 V	10 %	27.5 mm	1.083 in	105 ░C	-55 °C	Metallized Polypropylene (PP)			1.26 in	0.512 in	32 mm		1 µF	Radial	DV/DT High Frequency High Pulse Switching	Through Hole		13 mm	0.87 in	22.1 mm
